Rain Bird drip filter RBY075S 3/4" MPT — 200‑mesh (75μm) stainless screen, O-ring sealed

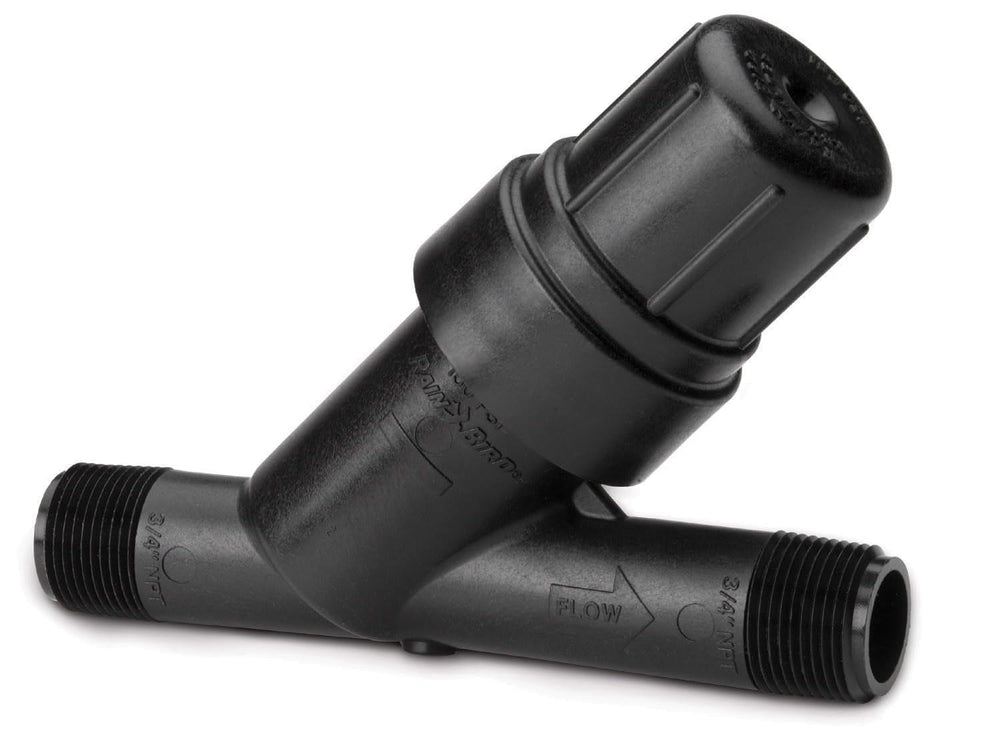

The Rain Bird RBY075S is a compact in-line "Y" drip filter with a removable 200-mesh (75 micron) stainless-steel element that protects downstream drip components from clogging.

This professional-grade 3/4" male pipe thread filter is designed to sit directly after valves or pressure regulators and trap fine debris before it reaches emitters, micro-sprays, or drip tubing. Built from glass-filled polypropylene and fitted with a secure O-ring sealed cap, the RBY075S balances toughness with easy maintenance for residential, commercial, or small agricultural drip systems.

How does the RBY075S reduce clogging in low-flow drip systems?

By screening water through a 200-mesh (75 micron) stainless-steel element, the RBY075S removes silt, rust, and organic particles that commonly block emitters and microtubing. The in-line "Y" shape directs debris away from sensitive components while the robust housing resists impact and UV exposure.

• 200 mesh (75 micron) stainless-steel filter element for fine particle removal
• Static filtration avoids moving parts that can fail or require frequent replacement
• Glass-filled polypropylene body and cap resist cracking and chemical attack
• O-ring sealed cap ensures a tight, leak-resistant service connection

What connections and pressures does this model support?

The RBY075S features 3/4" male pipe threaded (MPT) inlet and outlet to connect directly to valves, regulators, or piping without additional adapters. It’s specified for common irrigation pressures and flow ranges so it integrates easily into most drip layouts.

• 3/4" MPT inlet and outlet for direct connection to valves and fittings
• Operational inlet pressure rated up to 150 psi
• Designed for low-volume drip flow rates (0.20 to 5.0 gallons per hour typical downstream)
• Compatible with a variety of valve brands and pressure regulators

How is the filter cleaned and serviced?

Maintenance is straightforward: unthread the cap (sealed by an O-ring), remove the stainless-steel element, rinse or brush away collected debris, then reassemble. The removable element and uncomplicated cap design minimize downtime and tools required for routine cleaning.

• Cap unthreads quickly for fast access to the filter element
• 200 mesh stainless-steel screen is reusable after rinsing or brushing
• O-ring provides resealable protection—replaceable if worn
• No special tools required for routine maintenance

Will the RBY075S work with my existing irrigation parts?

The filter is engineered to be broadly compatible: the 3/4" MPT ports match standard irrigation valves, regulators, and piping, and the simple in-line design fits most system layouts. It works with drip tape, tubing, emitters, and micro-spray heads from any manufacturer as a first line of defense against particulate contamination.

• Universal 3/4" MPT connections fit common irrigation valves and fittings
• Suitable ahead of driplines, manifolds, regulators, and valves
• Functions with products from all major irrigation brands
• Also available in a 1" model (RBY100S) for larger installations

Who is this product for? The Rain Bird RBY075S is ideal for homeowners, landscapers, and small-scale growers who rely on low-flow drip irrigation and need a reliable, low-maintenance filter to reduce emitter clogging. Choose this unit when you want a durable, serviceable filter that installs directly into existing 3/4" irrigation runs and offers a fine 75-micron screen to protect downstream components without complex plumbing changes.
