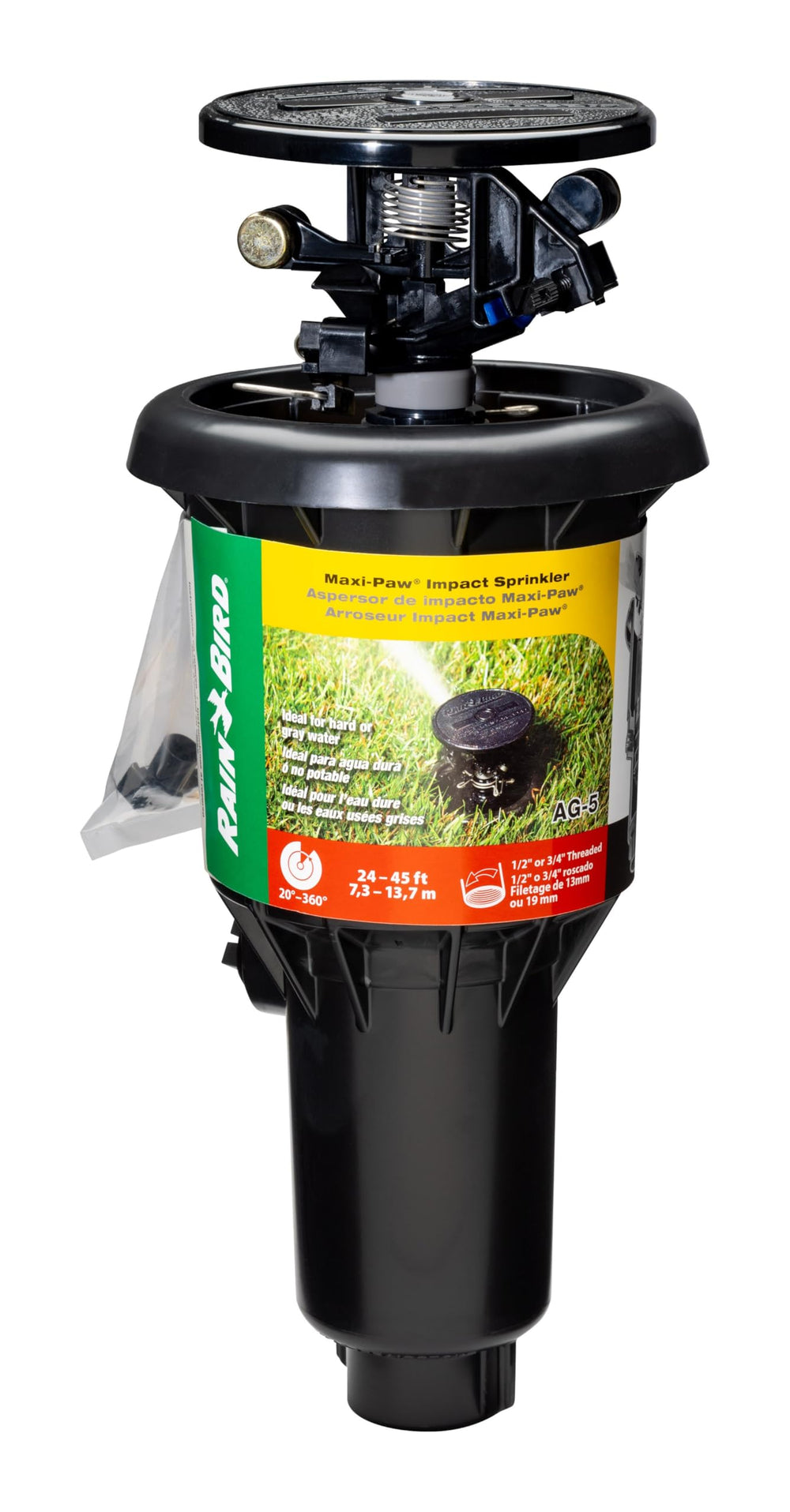

Rain Bird AG-5 Impact Pop-Up Sprinkler Full Circle 24–45 ft — Heavy-Duty, Adjustable Pattern

The Rain Bird AG-5 is a heavy-duty pop-up impact sprinkler that delivers adjustable full- or part-circle coverage from 24 to 45 feet for durable, reliable underground irrigation.

Built for residential and commercial in-ground systems, the AG-5 combines industrial-strength components with simple field serviceability. Its impact-drive design tolerates mineral-laden or reclaimed water better than many rotary heads, and the pop-up body retracts flush with turf when not watering. With multiple nozzle options and infinite pattern adjustment, the AG-5 is a flexible choice for lawns, parks, and high-traffic landscapes.

How does the AG-5 handle different watering patterns and distances?

You can set the AG-5 to spray anywhere between a narrow 20° arc and a complete 360° circle, with continuous pattern adjustment for precise coverage. Spray radius ranges from about 24 to 45 feet depending on pressure and nozzle selection, letting you tailor spacing to your layout.

• Full circle (360°) or part circle (20°–340°) adjustment
• Spray distance: 24'–45' depending on pressure and nozzle
• Infinite pattern adjustment for edge and corner coverage
• Spacing guidance for 24' to 45' between heads

What features improve durability and performance with hard or reclaimed water?

The AG-5 uses heavy-duty materials and a robust impact mechanism that resist clogging and wear from high mineral content or “dirty” water. A patented pressure-activated wiper seal maintains reliable pop-up and retraction, and the reinforced case resists damage in high-traffic locations.

• Designed to tolerate high-mineral and reclaimed water
• Heavy, reinforced case with ribbed design for strength
• Patented wiper seal for consistent pop-up/pull-down action
• Rolled-lip body design minimizes backwash and turf intrusion

How can I fine-tune output and reduce overspray?

The brass weighted PJ spray guide arm directs the stream to avoid splashing on walkways and structures, while the diffuser screw breaks the jet into finer droplets for more uniform coverage. The AG-5 ships with five color-coded matched precipitation rate nozzles so you can change flow without tools to balance run times and overlap.

• Water Saver brass-weighted spray guide reduces side splash
• Diffuser screw allows up to 25% radius reduction for tighter control
• Includes five interchangeable color-coded nozzles (blue #8 preinstalled)
• No tools required for nozzle swaps; adjust flow from 1.5 to 8.4 GPM

What installation and compatibility options does the AG-5 offer?

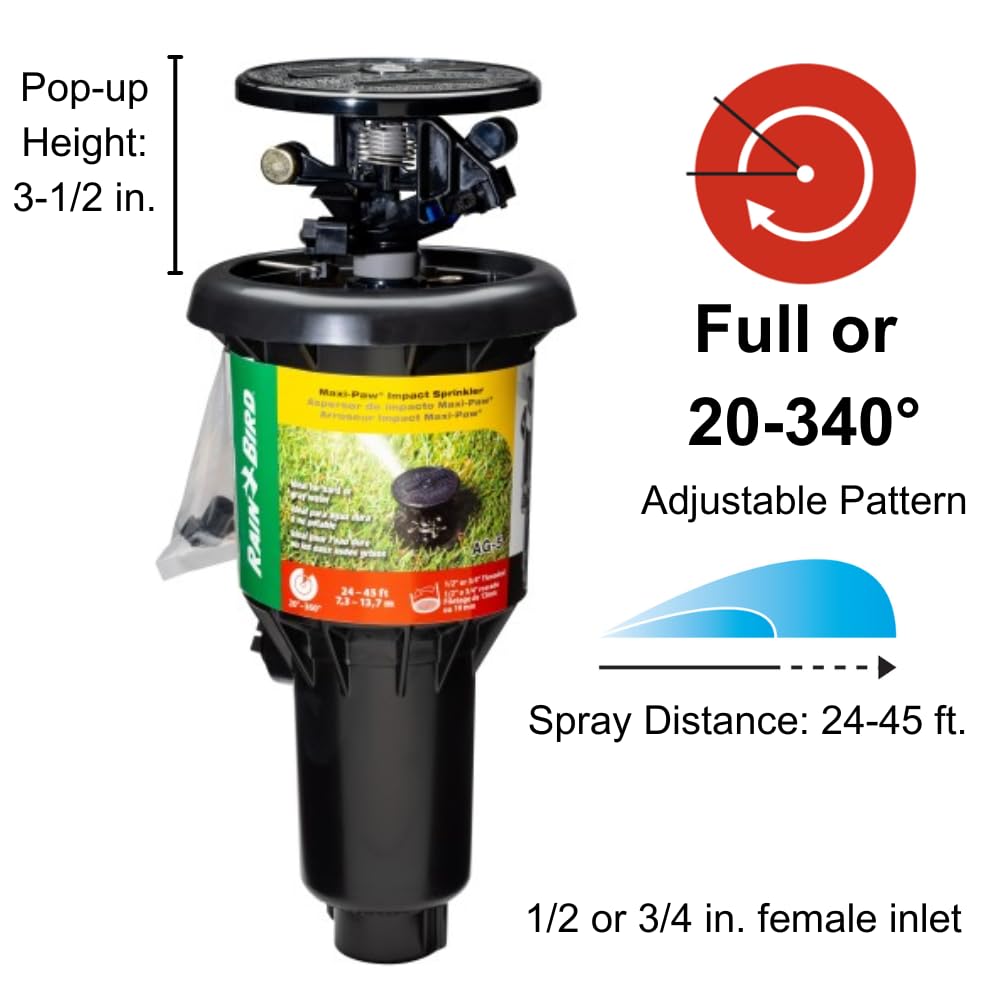

The AG-5 features both 1/2" and 3/4" bottom inlets plus a 1/2" side female connection for flexible plumbing layouts. Its 3-1/2" pop-up height clears taller turf, and the rolled lip helps set correct installation depth while discouraging grass intrusion.

• Combination 1/2" or 3/4" bottom inlet and 1/2" side female connection
• 3.5" pop-up height clears tall grass and rough turf
• Rolled-lip design streamlines installation height and reduces debris entry
• Works across 25–50 psi pressure range for varied irrigation systems

Who is this for: the AG-5 is well suited for homeowners, landscape professionals, and facility managers who need a rugged, serviceable pop-up sprinkler that performs with less-than-perfect water quality. Choose the AG-5 when you want commercial-style durability in a pop-up package, adjustable patterns for complex layouts, and simple nozzle-based flow control to match precipitation rates across a zone.
