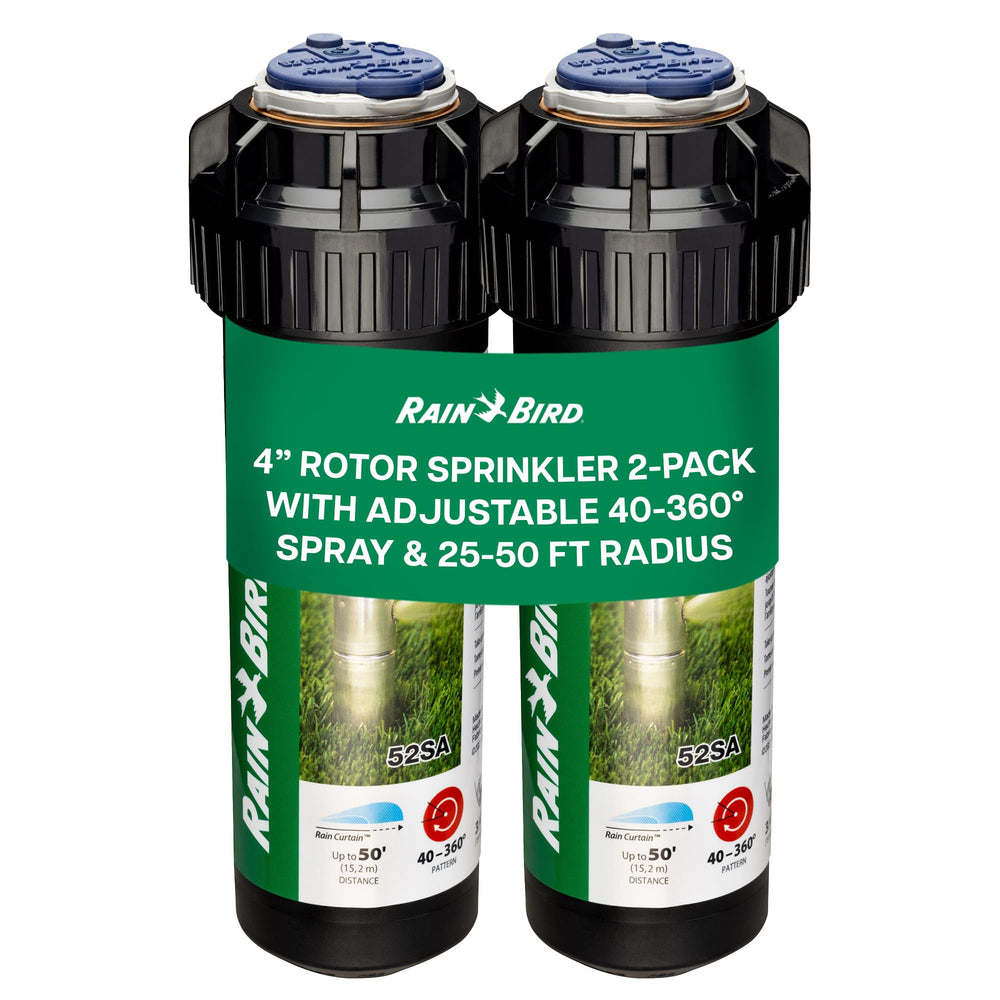

Rain Bird 52SA 4in Gear-Drive Rotor Sprinkler, 2-Pack — 25–50 ft Radius, Adjustable 40°–360°

The Rain Bird 52SA is a stainless-steel, gear-driven 4-inch pop-up rotor designed for reliable, adjustable coverage across large lawn zones.

If you need a durable in-ground rotor that delivers even watering across medium to large turf areas, the Rain Bird 52SA provides a commercial-grade solution built for long service life. It combines Rain Curtain nozzle technology, a water-lubricated gear drive and a protected closed-case body so the unit resists debris and maintains consistent spray patterns. The 52SA comes factory-set to 180° and adjusts easily from the top, letting you tailor arc and radius without removing the head.

How precise is the spray pattern and distance control?

The 52SA gives you adjustable arcs from 40° to 360° and a throw radius between 25 and 50 feet, suitable for many standard residential and light commercial zones. Top-access adjustments mean you can fine-tune arc and distance quickly with a flat-blade screwdriver while the unit is installed.

• Adjustable arc: 40°–360° for sector or full-circle coverage
• Spray distance: 25–50 ft, adjustable from the top
• Factory preset to 180° for easy initial setup
• Tool access: flat-blade screwdriver for on-site tuning

What makes the Rain Curtain nozzles better for turf?

Patented Rain Curtain nozzles produce larger, wind-resistant droplets that fall evenly across the watering pattern, reducing misting and drift. Micro ramp features add softer coverage near the head to eliminate dry spots close to the pop-up.

• Larger droplets resist wind for uniform coverage
• Micro ramps provide close-in watering to prevent dry rings
• Even distribution helps conserve water by targeting turf
• Designed to match typical lawn watering needs without overspray

How durable and serviceable is the 52SA underground design?

The 52SA uses a closed-case construction to keep sand, grass and debris away from internal gears, improving longevity in buried installations. A water-lubricated gear drive, reinforced seals and a stainless-steel retract spring add mechanical robustness for frequent cycling and seasonal use.

• Closed-case body protects internal parts from grit and roots
• Water-lubricated gear drive lowers wear on moving parts
• Stainless-steel retract spring resists corrosion and fatigue
• 3/4-inch NPT female inlet for common plumbing connections

How easy is installation and adjustment on an existing system?

Installation uses a standard 3/4-inch female threaded inlet and the unit runs at typical irrigation pressures (around 70 PSI), making it straightforward to swap into many systems. Because arc and radius are adjustable from the top, you can avoid disassembly or digging for routine fine-tuning.

• 3/4-inch NPT female bottom inlet for common fittings
• Operates around 70 PSI—compatible with residential systems
• Top-adjust arc and distance without removing the head
• Factory preset reduces initial setup time on installation

Who this is for: The Rain Bird 52SA 4-inch pop-up rotor is aimed at homeowners, landscapers and property managers who need dependable, adjustable coverage for medium-to-large lawns or planted areas. Choose this two-pack if you want a heavy-duty rotor with wind-resistant nozzle performance, easy top-side adjustments, and a robust design that withstands buried installations and frequent irrigation cycles.
