IGEYAPA Mini ATS 4P 63A AC110V Automatic/Manual Transfer Switch DIN-Rail, Fast 0.05s Transfer

IGEYAPA Mini ATS 4P 63A AC110V is a compact automatic/manual transfer switch that instantly swaps between two power sources to keep critical circuits powered.

This DIN-rail mount Mini ATS is built for small commercial and residential power systems that need a reliable, quick-changeover device. It accepts a wide current range, supports both automatic and manual operation, and uses a fast-transfer mechanism to minimize interruption when the primary supply fails. The unit’s control coil runs on AC110V while the switching block is a four-pole design rated to carry up to 63A, making it suitable for three-phase or multi-pole single-phase setups.

How does this transfer switch detect and react to a power loss?

The ATS continuously monitors the normal (primary) and standby (backup) supplies. When it senses the primary supply fall outside preset thresholds, it triggers the changeover within approximately 0.05 seconds to restore power from the backup source. When normal service returns, the switch can return automatically to the primary line.

• Automatic detection and transfer in about 0.05 seconds
• Indicator lights show which source is active for easy monitoring
• Automatic return to primary source once restored
• Control coil rated for AC110V operation

What operation modes are available and how do I use them?

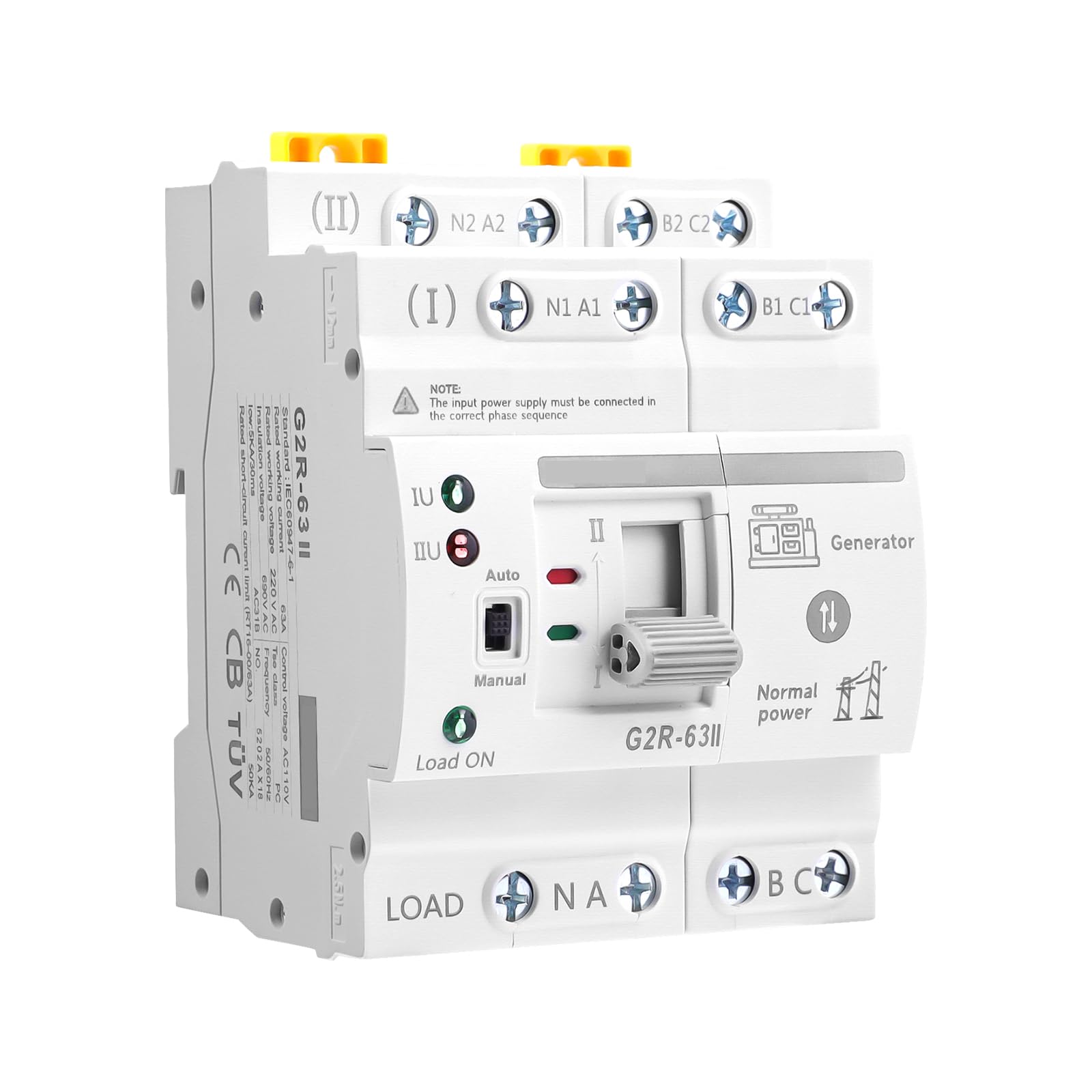

The unit offers both Automatic and Manual modes so you can choose automatic protection or hands-on control. In Automatic, set the left selector to Auto and the right handle to position I to let the ATS manage switching. In Manual, move the left selector to Manual and use the right handle to select either supply instantly.

• Automatic: left switch in Auto, right handle in position I for normal operation
• Manual: left switch in Manual and manually select supply I or II
• Visual LEDs indicate active source: green for primary, red for backup
• Quick manual override for maintenance or testing

What electrical limits, protections, and installation needs should I know?

This model is designed for 50/60Hz systems and fits standard PZ30 distribution boxes or similar DIN-rail panels. It supports working currents across a broad range (6–63A) and includes voltage monitoring thresholds and over/under-voltage protection to prevent nuisance switching. The housing is PA6 plastic with good heat and insulation properties for safe, long-term use.

• Four-pole switching rated to 63A continuous load
• Compatible with 50/60Hz systems and DIN-rail mounting
• PA6 flame-retardant enclosure (94V-2) for durable insulation
• Over/under-voltage monitoring to reduce false transfers

How do I maintain, test, and get support for this ATS?

Regular visual checks and periodic manual switching tests keep the ATS ready for emergencies. The device is made for easy panel installation and routine testing does not require special tools. IGEYAPA offers a short-term return window and multi-year warranty to help with service and confidence.

• Perform manual switch tests to verify transfer and return functions
• Inspect terminal tightness and LED operation periodically
• 30-day no-reason return and 3-year limited warranty from IGEYAPA
• Contact support for installation questions or troubleshooting

Who is this for: The IGEYAPA Mini ATS 4P 63A AC110V is aimed at homeowners, installers, and small-facility operators who need a compact, fast-acting transfer switch for backup generators, inverters, or dual-grid arrangements. It fits scenarios where brief power interruptions are unacceptable—such as server closets, refrigeration circuits, workshops, small medical equipment, and residential central loads—offering both automatic protection and manual control for maintenance and testing.
