WindyNation 10 AWG Solar Extension Cable 50 ft Pair (Red & Black) with IP67 MC4-style Connectors, UL4703

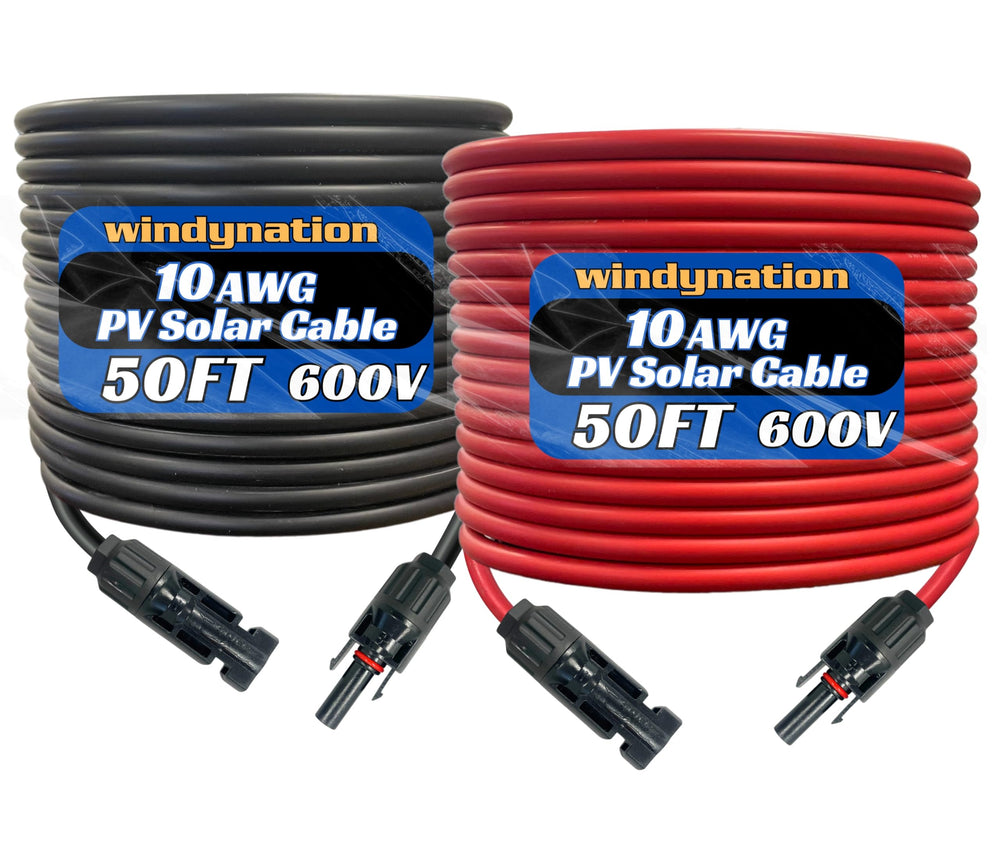

WindyNation 10 AWG photovoltaic extension cables — a 50 ft red and 50 ft black pair with weatherproof MC4-style PV connectors, built for durable, low-resistance solar panel connections.

These WindyNation extension wires are engineered to extend PV arrays or connect remote solar modules with minimal voltage drop. Each 50-foot cable is terminated at one end with a male connector and at the other end with a female connector, making integration straightforward with standard PV systems. Constructed with pure copper conductors and XLPE outer insulation, the pair is rated for outdoor use, direct burial, and the temperature ranges typical of rooftop and ground-mounted installations.

How do these 10 AWG cables reduce energy loss on my array?

Thicker pure-copper conductors lower electrical resistance compared with tinned or aluminum alternatives, preserving output across longer runs. Using 10 AWG keeps amperage handling high enough for many residential and small commercial strings while limiting voltage drop over 50-foot spans.

• Pure copper core for ultra-low resistance and better conductivity.
• 10 AWG size rated around 40 A for common PV circuits.
• 50 ft length per color reduces need for multiple joints or extensions.

Are the connectors and insulation suitable for outdoor and harsh conditions?

Yes — the cables arrive factory-terminated with weatherproof PV connectors that meet IP67 sealing standards for water ingress. The XLPE jacket resists UV, abrasion, and temperature extremes so the assembly performs reliably on roofs, poles, or buried runs.

• IP67-rated connectors withstand rain, dust, and seasonal freeze-thaw cycles.
• XLPE insulation resists sunlight, oils, and mechanical wear.
• Operating range from -40°C to 90°C (-40°F to 194°F) in wet or dry environments.

Will this wiring meet electrical code and installation expectations?

WindyNation PV cables are UL4703 listed specifically for photovoltaic use and sized to meet National Electrical Code (NEC) Article 690 requirements when applied correctly. They are suitable for use with or without raceways and are rated for direct burial where allowed by local codes.

• UL4703 approval for photovoltaic module interconnection cable.
• Compliant with NEC (NFPA 70) Article 690 when installed to code.
• Direct burial rating simplifies underground routing where permitted.

How easy is installation and what quality controls ensure reliability?

WindyNation ships each cable pre-terminated with one male and one female PV connector compatible with industry-standard plugs, reducing onsite termination time. Assemblies are crimped with automated pneumatic machines and undergo inspection at a California facility to help ensure consistent, high-quality terminations.

• Factory-terminated male and female PV connectors for plug-and-play use.
• Automated pneumatic crimping for strong, repeatable conductor crimps.
• Quality inspections performed before shipping from WindyNation’s USA facility.

Who is this for: Installers, DIY solar enthusiasts, and system designers who need a dependable mid-gauge extension cable for residential and light commercial PV arrays will find this WindyNation 10 AWG red-and-black pair a practical choice. It’s ideal when you require 50-foot runs with industry-standard, weatherproof connectors, low-resistance copper conductors, and materials rated for long-term outdoor exposure. If you need longer runs, higher current capacity, or different gauges, consider comparing WindyNation’s 8 AWG or 12 AWG options to match your system’s amperage and voltage-drop requirements.
