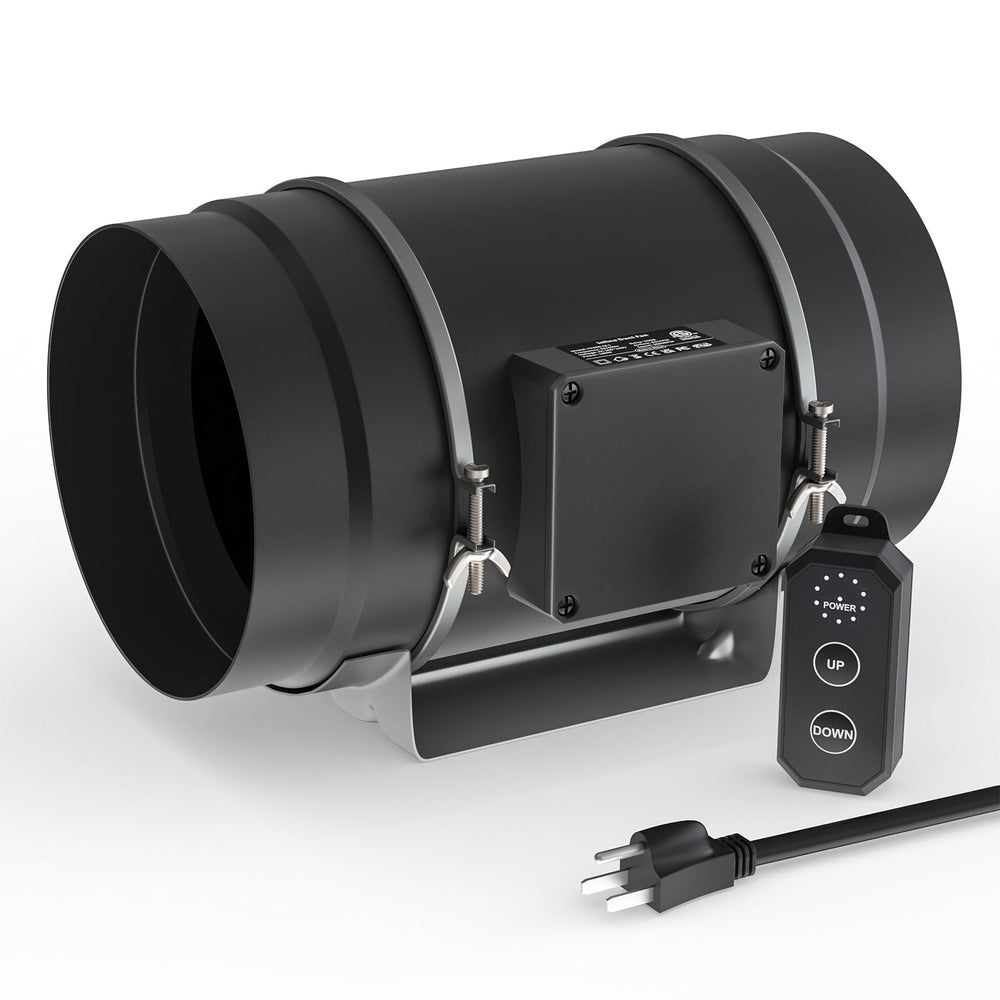

Toolazy 8-Inch Inline Duct Fan — 831 CFM EC Motor, 10-Speed PWM Controller, Low Noise 50dB

Toolazy's 8-inch inline duct fan delivers up to 831 CFM of controlled airflow using an efficient EC motor and a 10-speed PWM controller for heavy-duty ventilation applications.

This mixed-flow inline fan combines industrial-grade electronics and rugged construction to move large volumes of air while keeping energy use and noise low. Built for commercial and large residential systems, the Toolazy 8" fan handles long duct runs, high static pressure and continuous operation thanks to its brushless EC motor and reinforced duct ends. The package includes a wired 10-speed PWM controller and all hardware needed for immediate installation.

How powerful is this fan for large grow rooms and commercial spaces?

The Toolazy 8" fan produces a peak airflow of 831 CFM at 180W, making it capable of ventilating sizable rooms and handling demanding HVAC tasks. Its mixed-flow impeller preserves airflow under backpressure, so performance is maintained with long ducts or restrictive filters.

• Maximum airflow: 831 CFM at rated power
• Power draw: 180W for efficient CFM-per-watt output
• Handles high static pressure for long duct runs and filters
• Fits standard 8" / 200mm ducting for easy integration

What control options and speed precision does it offer?

The included wired PWM controller gives 10 distinct speed settings so you can fine-tune airflow for daily cycles or specific environmental targets. For remote control, the fan is compatible with Toolazy’s Smart WiFi Controller (sold separately) which enables scheduling, temperature/humidity triggers and synchronized multi-fan control via smartphone app.

• 10-speed wired PWM controller included for precise adjustments
• Compatible with Toolazy Smart WiFi Controller for app control
• 5ft power cord and 8ft control cable for flexible placement
• Smooth speed transitions reduce mechanical strain and noise

Is the motor reliable for continuous commercial use?

Yes—this model uses an industrial brushless three-phase EC motor engineered for long life and efficient operation. Rated for 40,000+ hours, the motor runs cooler than conventional AC units while delivering stable performance in continuous or heavy-duty duty cycles.

• Brushless EC motor for higher efficiency and longevity
• Mixed-flow impeller design improves CFM-per-watt
• Rated 40,000+ hours for long-term commercial duty
• ETL Listed and compatible with 110–240V, 50/60Hz systems

What comes in the box and how easy is installation?

The fan ships as a complete commercial kit ready for mounting and duct connection. Reinforced duct ends with locking tabs and included mounting hardware simplify installation in HVAC systems, greenhouses, grow rooms or workshops.

• Complete kit: fan, 10-speed controller, power and control cables
• Mounting hardware and reinforced duct ends with locking tabs
• Fits 8" / 200mm ducting and works with standard clamps
• Universal voltage (AC 110–240V) for international compatibility

Who is this for? The Toolazy 8-inch inline duct fan is designed for professional growers, commercial greenhouse operators, HVAC contractors, and industrial facilities needing dependable high-volume ventilation. It’s also well suited to large residential ventilation tasks where low noise, precise speed control and efficient continuous operation are priorities. Choose this fan when you need consistent, high-output airflow that withstands long runs and heavy-duty schedules without wasting energy.
