Renogy Rover MPPT Solar Charge Controller 20A 12V/24V with Bluetooth — High-Efficiency, Die-Cast Housing

The Renogy Rover MPPT 20A Bluetooth charge controller is a compact Maximum Power Point Tracking regulator that maximizes solar harvest for 12V or 24V battery systems while offering Bluetooth monitoring and comprehensive protection.

If you run a small off-grid array, van conversion, RV system or remote cabin, the Rover 20A MPPT controller balances high-efficiency charging with easy system oversight. Its die-cast aluminum housing sheds heat, the MPPT algorithm tracks changing panel conditions, and the built-in Bluetooth lets you view performance and tweak settings from your phone. The unit supports common battery chemistries and includes multiple safety layers so your panels and batteries are protected from typical electrical faults.

How does the Rover improve solar charging compared with PWM controllers?

The Rover’s MPPT algorithm constantly finds the solar panel’s maximum power point so the array produces more usable watts under varying light and temperature. That means faster charging and better energy capture on cloudy mornings, partial shading, or non-ideal tilt angles. Compared to PWM, MPPT typically delivers a measurable increase in charging efficiency.

• Maximum tracking efficiency up to 99% for precise power extraction
• Peak conversion efficiency around 98% to convert panel energy to battery charge
• Improved performance in low-light, variable, or cold conditions

What battery types and charging stages does the controller support?

The Rover supports both common lead-acid and lithium battery chemistries with tailored charging profiles. Lead-acid batteries receive four-stage charging (Bulk, Absorption, Float, Equalization) to maintain capacity and health; lithium banks use a two-stage profile with bulk and absorption and include lithium reactivation. You can also customize parameters through the display and the Bluetooth app to match manufacturer recommendations.

• Automatic 12V/24V detection for non-lithium systems simplifies setup
• 4-stage charging for lead-acid (including equalization) to prolong life
• 2-stage charging plus reactivation option for lithium batteries

What safety and protection features are included?

Renogy built the Rover to actively protect your solar and battery components with multiple diagnostic and protective functions. The controller monitors polarity, voltage extremes, overloads and short-circuits, and it prevents reverse current at night. If a fault is detected it displays error codes and takes corrective action to isolate the problem and prevent damage.

• Reverse polarity protection to prevent wiring mistakes
• Overcharge, over-discharge and overload safeguards for system longevity
• Short-circuit and reverse-current protection for safe unattended operation

How can I monitor and control the Rover while it’s installed?

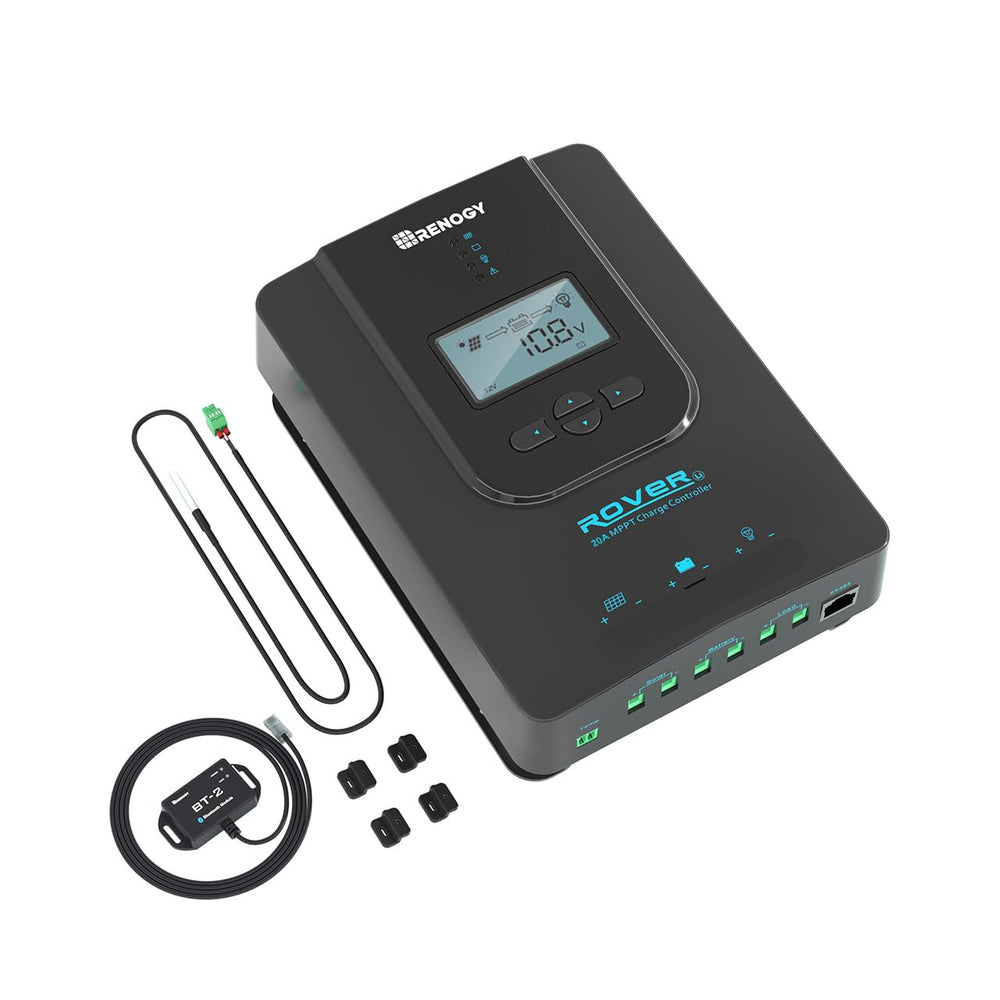

The Rover includes an LCD with status LEDs for instant on-device feedback and offers Bluetooth for remote viewing and configuration. Pair the controller with Renogy’s mobile app to log performance, read error codes, and adjust charging parameters without needing to access the unit directly. For local control, optional load terminals let you wire DC appliances and set up timed load schedules.

• Integrated Bluetooth for app-based monitoring and parameter changes
• LCD screen and LED indicators show charging status and diagnostics
• Optional load output with timers to automate DC loads and track consumption

Who this is for: The Renogy Rover MPPT 20A is designed for DIY solar installers and small-system owners who want better energy yield from their panels and straightforward remote monitoring. It’s a solid choice for vanlife setups, small camper or RV electrical systems, remote cabins, and modest off-grid homes where 20 amps of regulated charging and robust safety features meet the needs of 12V or 24V battery banks.
