Raindrip 3/4-Inch Y Filter for Drip Irrigation — Removable 150-Mesh Screen, UV-Stable Black

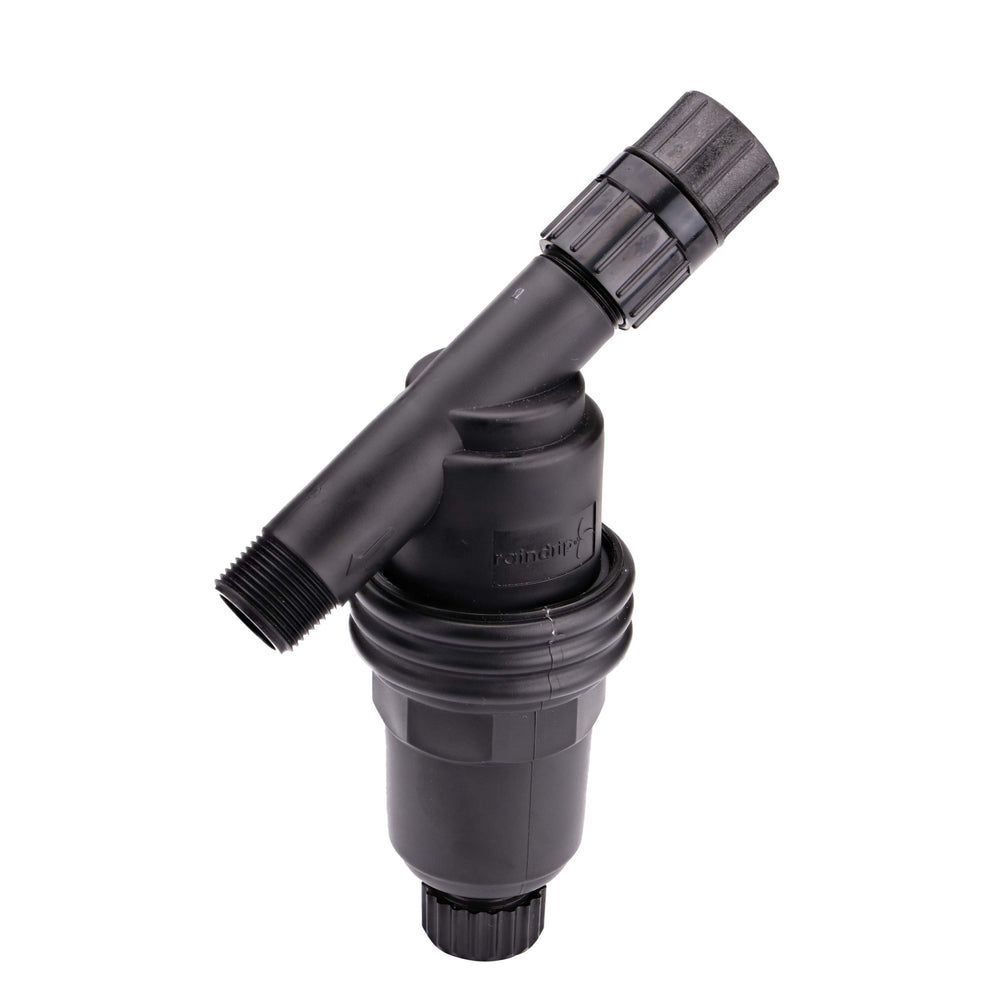

The Raindrip R605DT "Y" Filter is a 3/4-inch MPT inline debris screen designed to stop particulates from clogging drip emitters while offering easy removal and cleaning.

Installed in-line on a sprinkler riser or 3/4-inch plumbing run, this compact Y-shaped filter gives your drip or micro-irrigation system a simple, serviceable barrier against sand, rust, and other solid contaminants. Constructed from UV-stabilized ABS with a polyester 150-mesh element and a PVC washer, it creates a watertight threaded connection and can be flushed or pulled apart for routine maintenance.

How do I install the Y filter on my existing irrigation line?

Thread the male 3/4-inch MPT ends into the corresponding 3/4-inch FPT spigot or riser; make sure the directional arrow on the housing points the same way as water flow. Tighten hand-tight plus a quarter turn with a wrench for a secure seal, and position the filter above ground if possible for easy access.

• Connect to a 3/4-inch FPT spigot or sprinkler riser
• Align the arrow with the direction water travels
• Hand-tighten then snug with a wrench for a leak-free fit
• Mount accessibly to simplify routine cleaning

What maintenance does the Raindrip R605DT require to keep emitters clear?

Routine service is straightforward: unscrew the flush/cleanout cap, remove the central housing, and extract the polyester 150-mesh screen to rinse or brush away trapped particles. The design allows quick flushing without removing the entire unit when debris is minimal.

• Remove flush cap to flush trapped debris
• Pull out the filter screen for rinsing or brushing
• Reassemble the housing and cap after cleaning
• Check periodically in sandy or high-sediment water sources

Will this filter protect my drip emitters and valves effectively?

The 150-mesh polyester element blocks most common particulates that cause emitter blockage, reducing emitter maintenance and prolonging component life when used as part of a complete drip system. It’s not a chemical filter, so it won’t remove dissolved minerals or algae by itself.

• 150-mesh catches sand, rust flakes, and larger solids
• Prevents mechanical clogging of downstream emitters
• Best used with regular flushing and upstream pre-filters if needed
• Not intended for dissolved contaminants or biological treatment

Who is this product for? The Raindrip R605DT "Y" Filter is built for landscapers, gardeners, and homeowners who run drip or micro-irrigation on sprinkler risers or 3/4-inch pipe and want a low-cost, simple-to-service screen to reduce emitter clogs. It’s ideal for new installations, system expansions, or repairs where a threaded, UV-resistant inline filter will simplify maintenance and keep water flowing to plants reliably.
