PetMigo 54" Deck Spindle Assembly — Direct Replacement for Cub Cadet/MTD, 6-13/16" Height & 5-7/16" Pulley

PetMigo 54" Deck Spindle Assembly replaces worn spindles on many 54-inch zero-turn and lawn tractor decks, restoring blade stability and reliable cutting performance.

When a spindle fails, your mower deck can vibrate, cut unevenly, or stop spinning entirely. This PetMigo 54" deck spindle assembly is engineered as a direct replacement for a wide range of Cub Cadet, MTD, Troy-Bilt, Craftsman and related models, matching key dimensions and mounting patterns to simplify installation and get your mower back to work quickly. The assembly includes the right spindle height and pulley outer diameter to match factory decks while using a durable star-design hub for strength.

Which mower models and part numbers does this spindle fit?

This spindle is compatible with many 54-inch decks across multiple brands. It replaces Cub Cadet part numbers 618-06978 and 918-06978 and cross-references several OEM codes used by MTD, Craftsman, Troy-Bilt and others.

• Cub Cadet: RZT-L54, RZT-S54, XT1-GT54, XT1-ST54, XT2 series, select ZT1/ZT2 (2019–2020) and multiple S/L 54 models.
• Troy-Bilt: TB2454 and Super Bronco/Mustang 54 series (various years listed).
• Craftsman/MTD/White Outdoor/Yard Machines and Columbia series: T8400, G8400, Z6600, ZT-54, YT54 and CGT/CSLT models.
• OEM cross references: 490-130-C013, 490-130-F013, 490-130-Y013 and other Turn Tight series numbers.

How does the spindle’s size and design affect deck performance?

The PetMigo spindle is built to match the deck’s original geometry: correct spindle height and pulley diameter keep blade alignment and belt tension consistent, preventing rubbing, uneven wear, or misalignment that causes poor cuts. The six-point star hub design increases load distribution for long-term stability under heavy use.

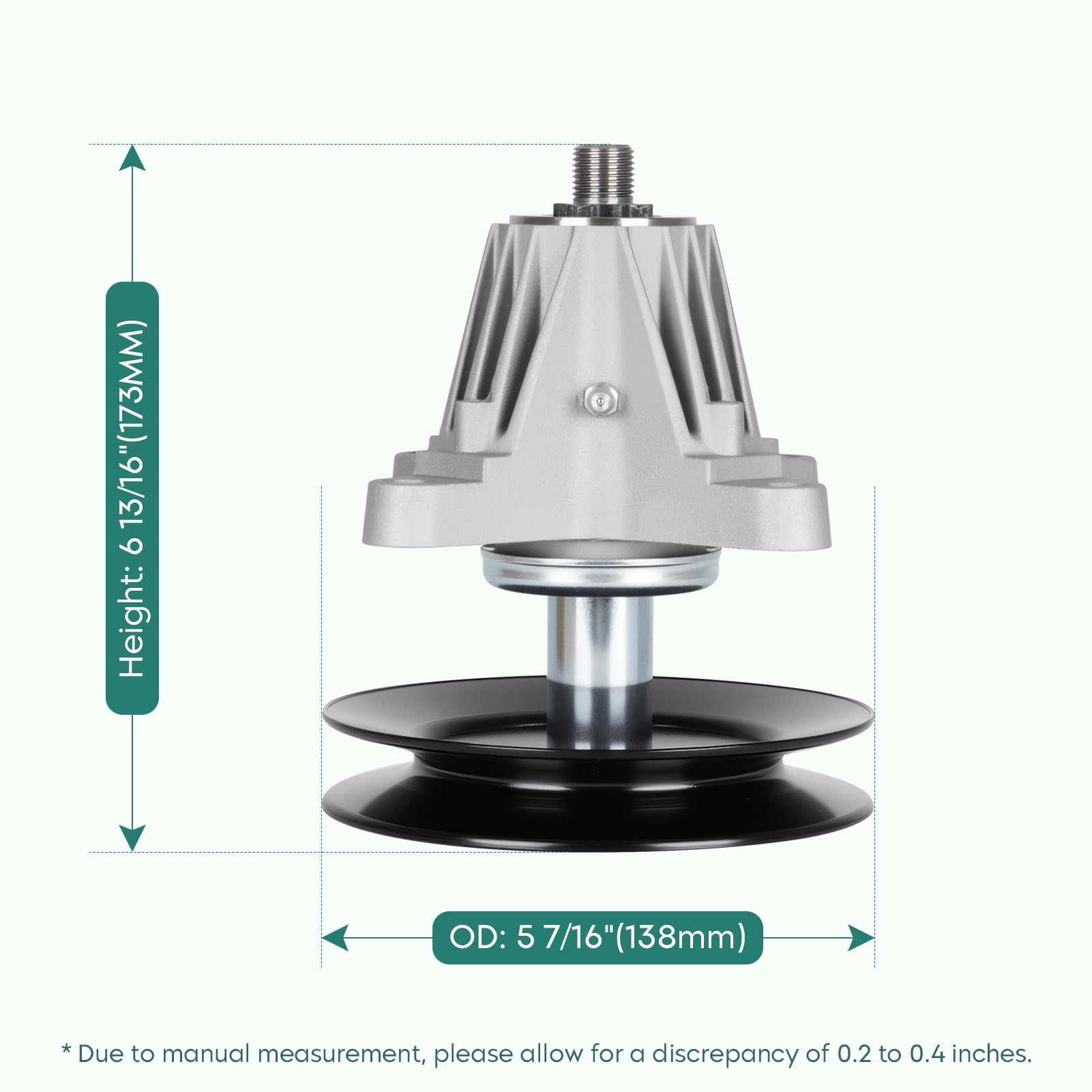

• Spindle height: 6 13/16" (173 mm) to align blade plane with the deck.
• Pulley outer diameter: 5 7/16" (138 mm) to maintain factory belt wrap and tension.
• Six-point star hub improves strength and resists deformation under load.

What should I check before ordering to ensure compatibility?

Confirm your mower’s deck size is 54 inches and verify the OEM part number or model/year fit list. Measure the spindle height and pulley OD if possible, and review your mower’s service manual or the old spindle’s stamped numbers to cross-check fitment.

• Verify deck width: 54" deck required.
• Check OEM number on old spindle: 618-06978, 918-06978, or cross-reference codes.
• Confirm model and year compatibility from the fit list (some ZT1/ZT2 parts fit only 2019–2020).

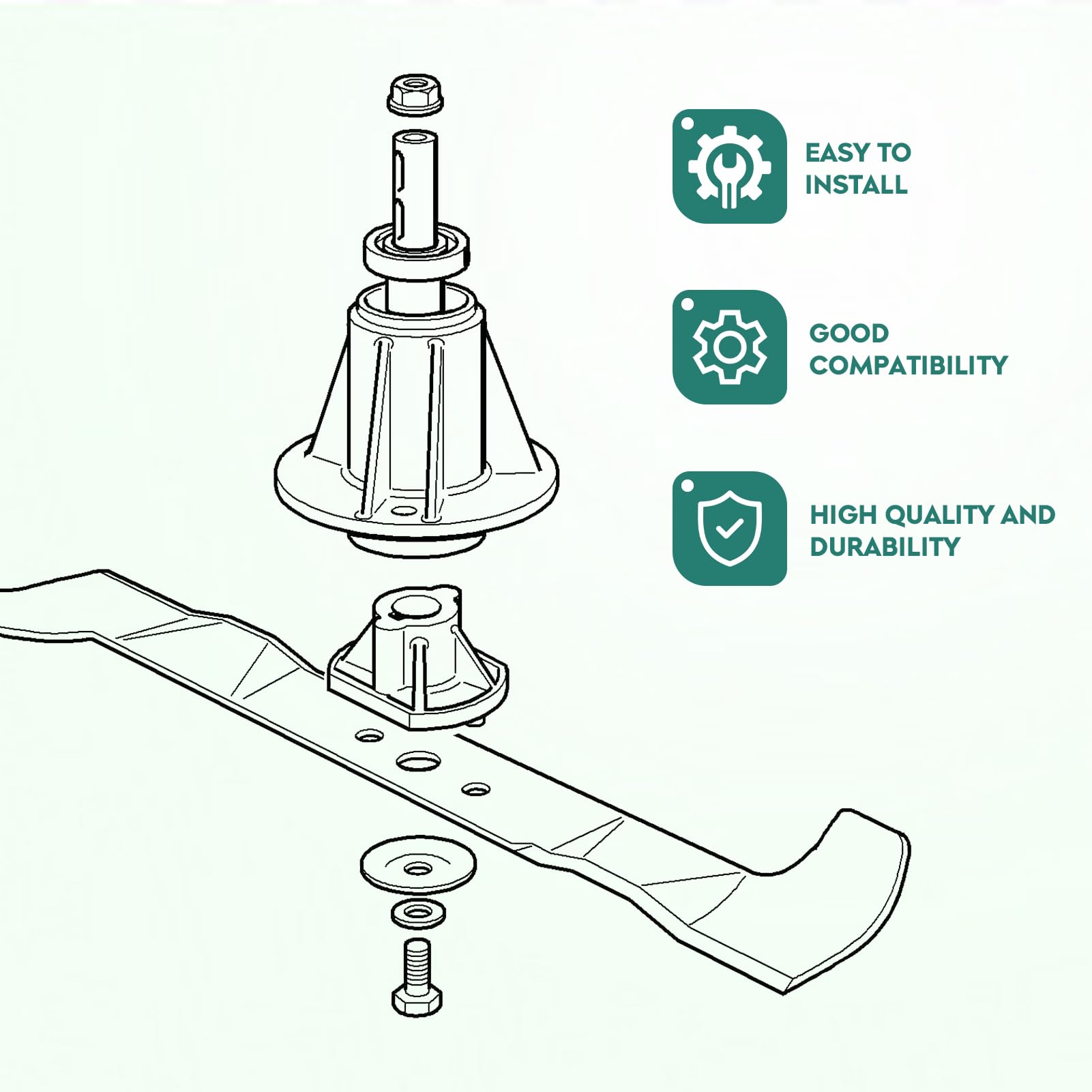

How straightforward is installation and what tools are usually needed?

Installation is typically a straightforward mechanical swap if you have basic hand tools and light mechanical experience. You’ll need to remove the deck and blades, support the deck safely, unbolt the old spindle, transfer any pulleys or spacers as needed, and torque the new spindle to factory specifications.

• Common tools: socket set, torque wrench, screwdriver, blade removal tool or strap wrench.
• Safety steps: disconnect spark plug and secure deck before working underneath.
• Follow OEM torque specs and use threadlocker where recommended for long-lasting fit.

Who is this for: This PetMigo 54" deck spindle assembly is intended for owners and technicians of lawn tractors and zero-turn mowers who need a durable, OEM-compatible replacement for worn or damaged spindles. It’s a fitment-focused part for DIY repairers, small maintenance shops, and fleet managers who maintain Cub Cadet, MTD, Troy-Bilt, Craftsman and compatible machines with 54" decks and the listed part numbers.
