Orbit Pulse Pop-Up Impact Sprinkler Head, 3-inch Black (Model 55200) — Clog-Resistant, Coverage to 35 ft

The Orbit Pulse Pop-Up Impact Sprinkler Head (model 55200) is a 3-inch pop-up, clog-resistant impact sprinkler built for dirty or reclaimed water that delivers reliable coverage up to 35 feet with adjustable arc and radius.

Designed for landscapes that face high-mineral, dirty or reclaimed water, the Pulse pop-up impact combines a large-orifice nozzle, a double-weighted impact arm and corrosion-resistant materials so it keeps operating where conventional rotors clog or stall. It installs on standard 1/2" fittings, offers precise arc control and a low precipitation rate to minimize runoff and puddling across many soil types.

How far will this sprinkler throw, and can I reduce its distance?

The Pulse is rated to cover up to 35 feet of throw between heads, making it suitable for medium to large lawn and planting areas. If you need shorter coverage, a built-in radius adjustment screw lets you reduce the impact throw to 75 percent of the rated distance for finer control.

• Maximum throw: up to 35 feet (recommended at 40 PSI)
• Radius reduction: adjustable down to 75% with radius screw
• Pre-installed nozzle: 3.0 GPM for predictable output
• Recommended pressure: 40 PSI for optimal performance

Will it resist clogging when using reclaimed or mineral-heavy water?

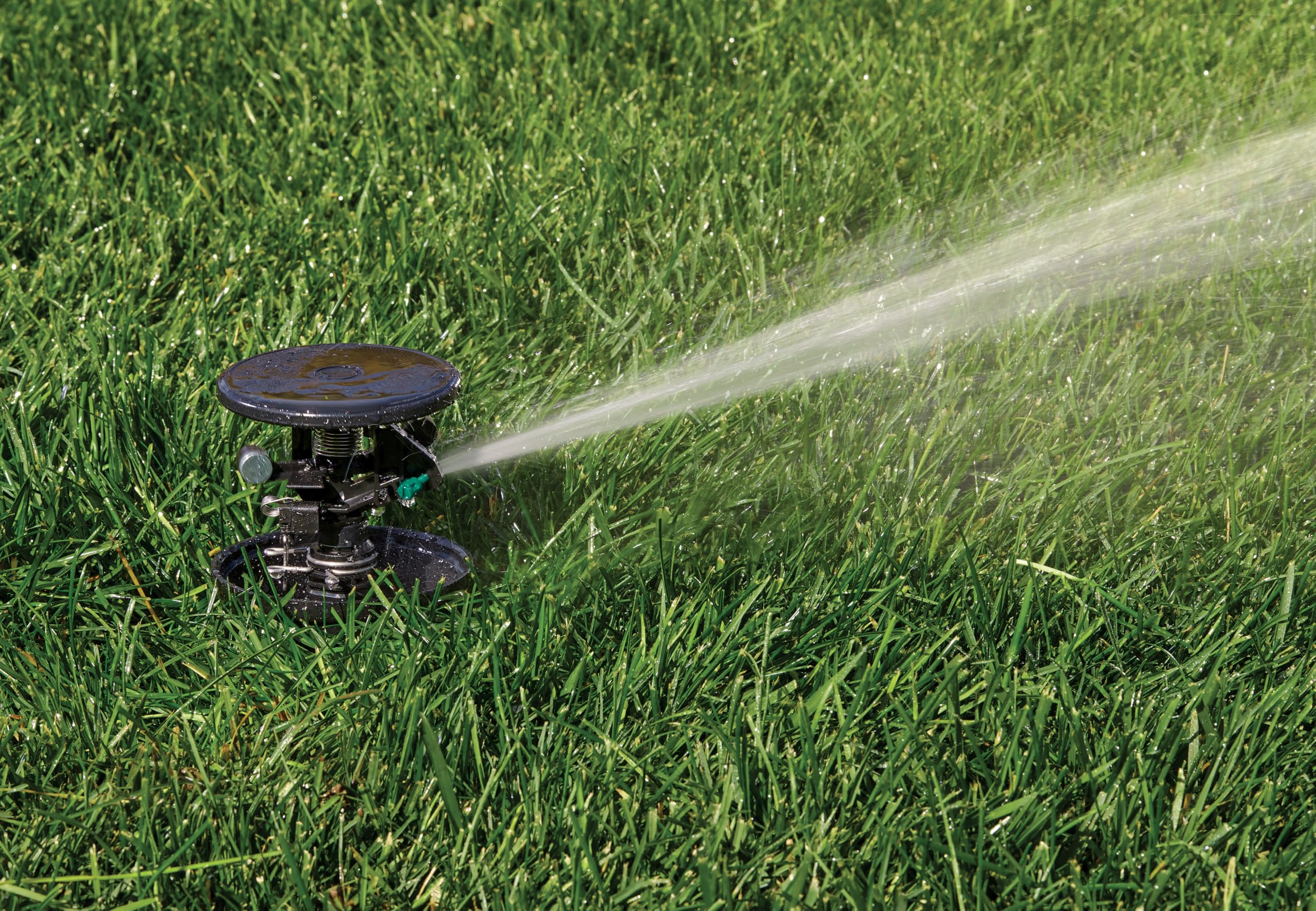

Yes—this model was engineered with dirty and reclaimed water service in mind. A large nozzle orifice and a robust double-weighted impact arm help prevent debris from jamming the mechanism, keeping the sprinkler cycling under conditions that can stall smaller, finer-orifice rotors.

• Large nozzle orifice reduces clogging risk
• Double-weighted impact arm maintains motion under pressure
• Stainless-steel components for corrosion resistance
• Works well with reclaimed, mineral-rich, or sediment-laden water

How do I control the spray pattern and fit it into an existing system?

Pattern control is straightforward: set the arc between 20 and 360 degrees using arc adjustment stops, and flip the trip pin to create a full 360-degree pattern. For plumbing, the unit accepts 1/2" female pipe thread at the side and bottom; a slotted plug closes whichever inlet you don’t use.

• Arc adjustment: 20° to full 360° with tool-free stops
• Full pattern: flip the trip pin for 360° coverage
• Inlets: 1/2" FPT side and bottom—slotted plug included
• Compatible with common rotors from Orbit, Hydro-Rain and others

What materials and pop-up height does it have for landscape durability?

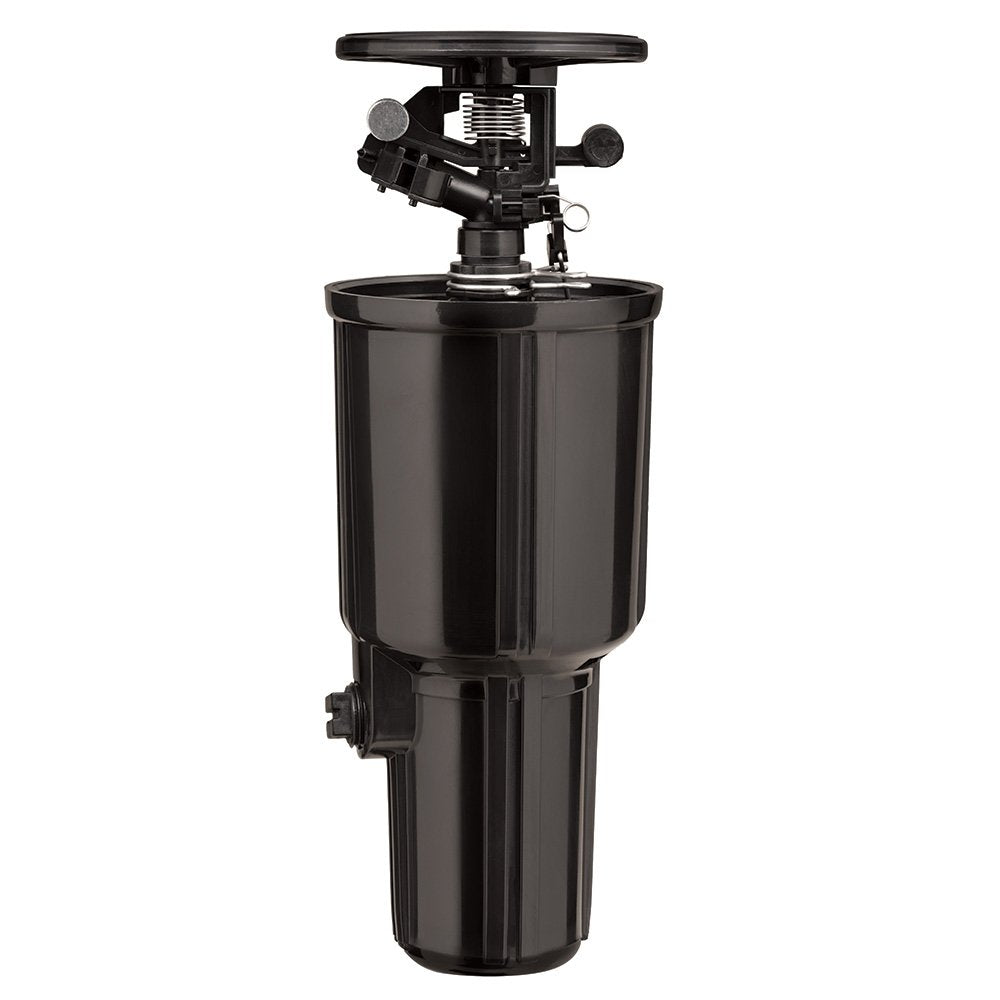

The can and riser are molded from high-impact ABS for durability, while metal parts are stainless steel to resist corrosion from reclaimed and mineral-laden water. A 3-inch pop-up height ensures the nozzle clears medium-height grass and landscape cover for unobstructed spray.

• Pop-up height: 3 inches—clears medium grass
• Body material: high-impact ABS can and riser stem
• Metal parts: stainless steel for longevity
• Low precipitation rate: reduces runoff and puddling risk

Who is this for? The Orbit Pulse Pop-Up Impact Sprinkler Head is aimed at landscapers, contractors and homeowners who need a reliable, clog-resistant irrigation solution for areas supplied with reclaimed or dirty water, or for soils and slopes that require low precipitation rates to avoid runoff. If you want a sturdy pop-up impact that fits standard 1/2" lines, offers precise pattern control and keeps working under tougher water conditions, the Pulse is a practical, long-life choice.
