Orbit 1 in. FPT L-Series Automatic Sprinkler Valve - 24 VAC Solenoid, Inline with Scrubber Filter

The Orbit 1 in. FPT L-Series Automatic Sprinkler Valve (model 57281) is a 24 VAC inline irrigation valve designed for reliable zone control and easy field servicing.

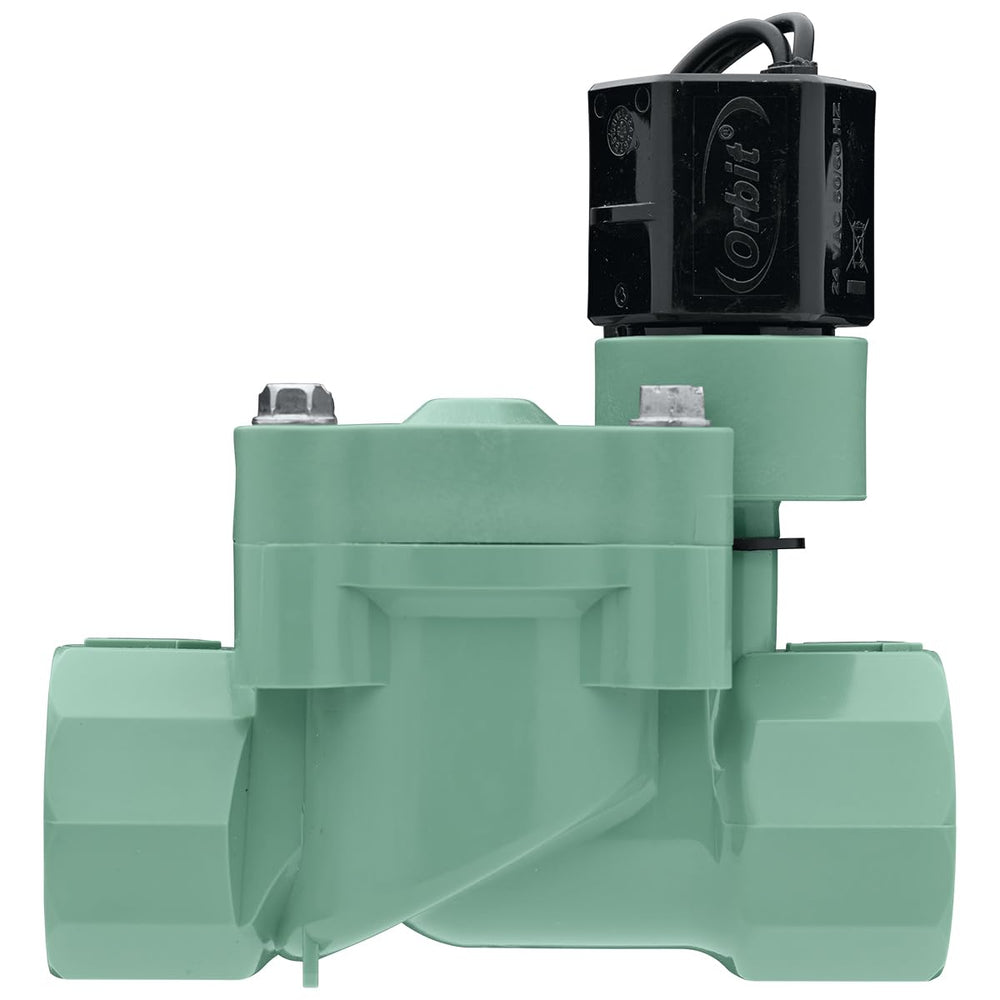

This inline automatic valve is built to be the everyday workhorse in residential and light-commercial irrigation systems. It combines a solenoid-operated actuator, manual twist-to-open actuation, and a built-in scrubber filter to reduce clogging, making it a common choice for preassembled valve manifolds and retrofit jobs. Constructed with PVC-compatible threads and a serviceable diaphragm lid, the L-Series valve fits standard PVC fittings and works with most 24 VAC controllers for straightforward integration.

How does this valve control water to sprinklers or drip zones?

The Orbit L-Series valve opens and closes the water flow using a 24 VAC solenoid that responds to controller signals. When the controller sends a 24 VAC pulse, the solenoid shifts the internal diaphragm to allow water through the outlet; when power stops, the diaphragm seals and flow stops. Manual actuation is available by turning the solenoid a quarter-turn, letting you run a zone without electrical input.

• 24 VAC solenoid compatible with major irrigation controllers
• Manual quarter-turn solenoid override for independent zone testing
• Available in 1 in. female pipe thread for direct PVC connection
• Works for both sprinkler and drip irrigation lines

What features help prevent clogging and simplify maintenance?

This valve includes an internal scrubber filter that reduces debris buildup around the diaphragm area, improving reliability when water contains sediment. The lid is secured with four captured screws so the diaphragm and internal parts can be serviced without losing hardware in the field. These design choices lower downtime and make routine checks faster for installers and homeowners.

• Internal scrubber filter protects the diaphragm from dirt and grit
• Four captured lid screws keep components attached during service
• Serviceable diaphragm for quick replacement or inspection
• Durable materials for outdoor, cold-water irrigation use

Will this valve fit my existing PVC plumbing and controller?

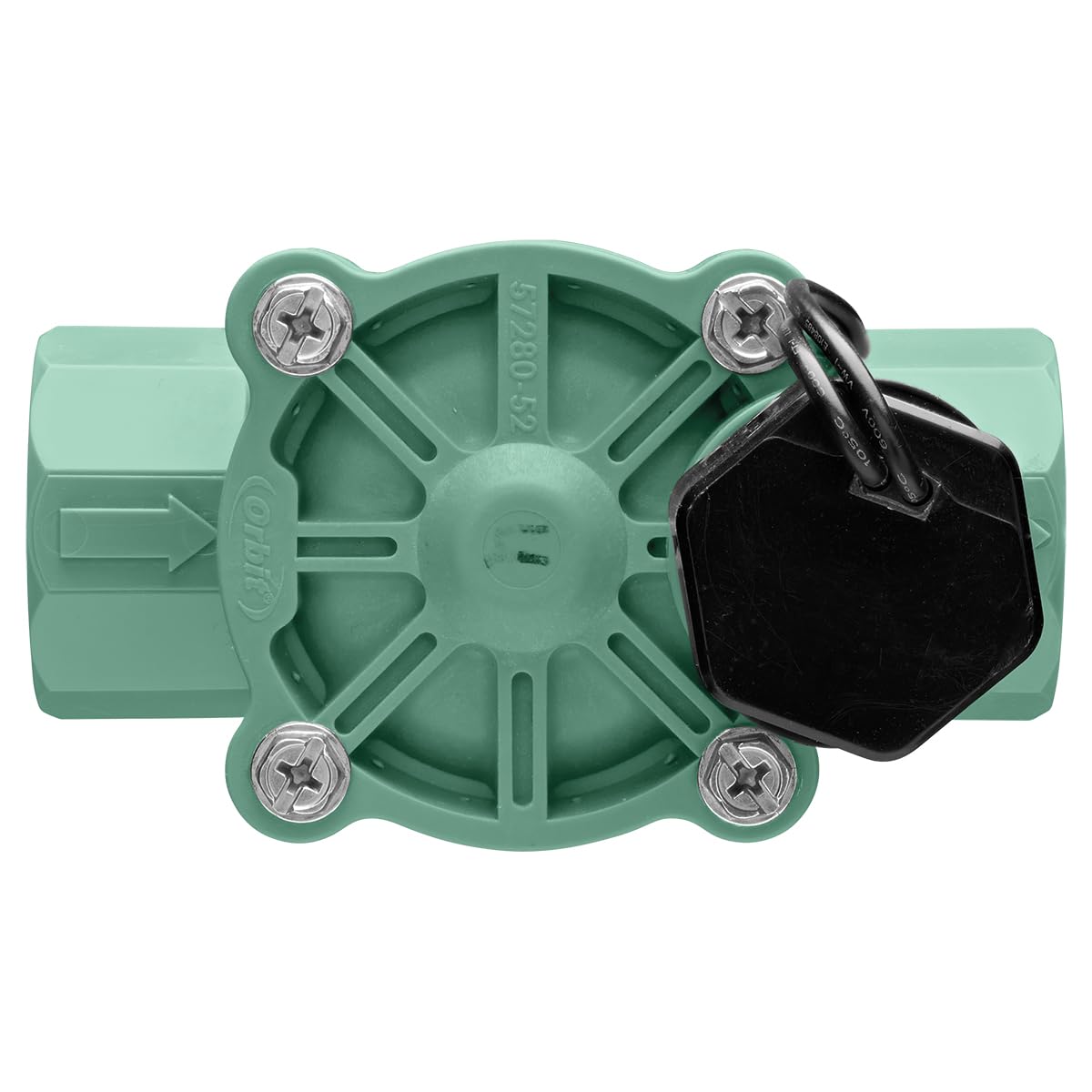

The 1 in. FPT threads are sized to mate with Schedule 40 and 80 PVC fittings and typical preassembled valve manifolds, making the valve a practical swap-in for many systems. The solenoid uses nickel-plated copper windings and runs on standard 24 VAC, so it works with Orbit controllers as well as other major brands. For glue-free installs, you can use compatible quick-fit fittings, while smart controller pairing improves scheduling and water savings.

• 1 in. female pipe thread compatible with Schedule 40/80 PVC
• Solenoid designed for standard 24 VAC irrigation controllers

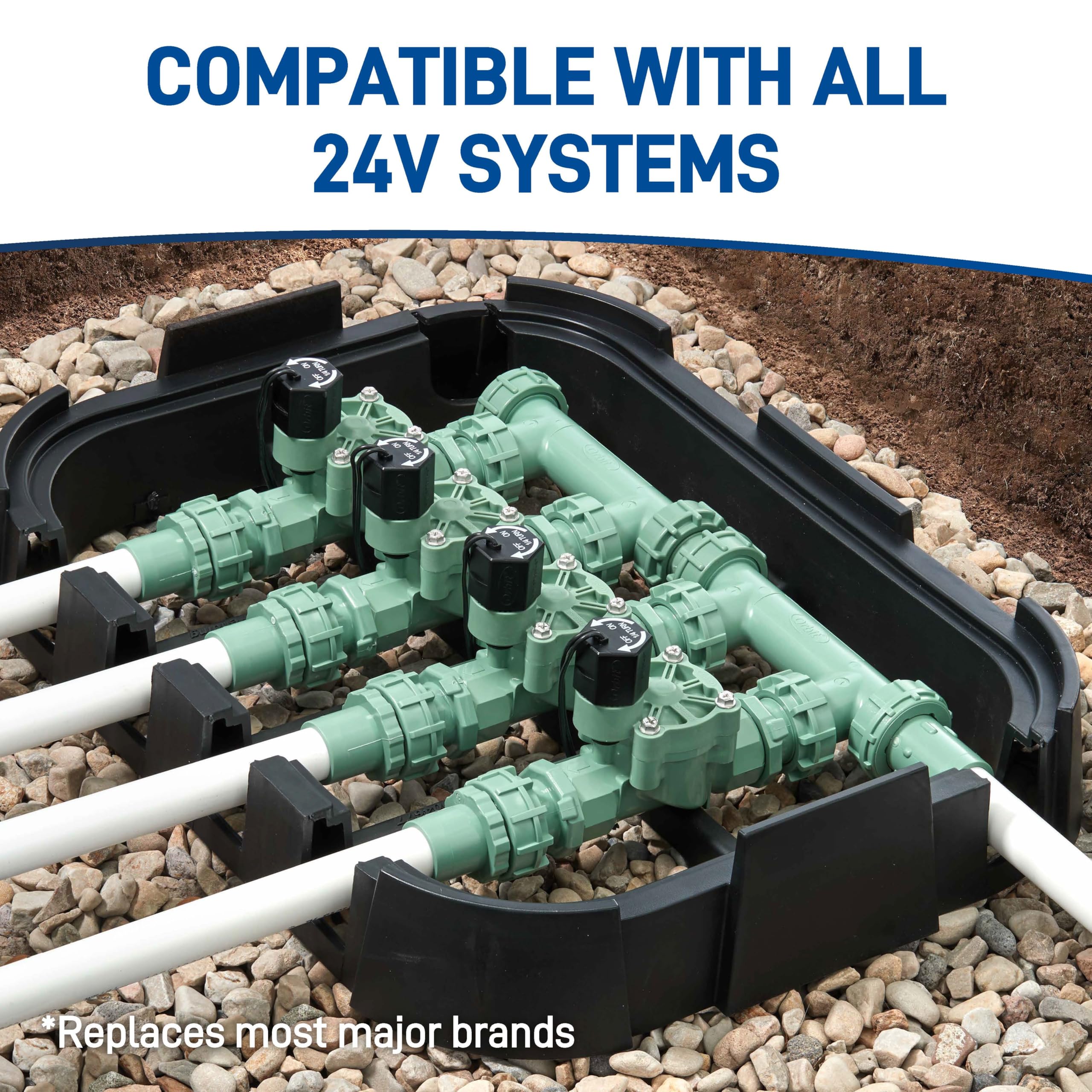

• Direct replacement in heavy-duty Orbit preassembled manifolds
• Recommends B-hyve pairing for advanced water conservation control

How do I choose and install the right valve for my system?

Select this 1 in. FPT model when your supply and zone piping match a one-inch inlet and you need reliable, serviceable operation. Install it inline with proper orientation to flow, secure threaded PVC fittings or manifold connections, and wire the solenoid to a 24 VAC zone terminal on your controller. Test manual actuation and check the scrubber filter after initial startup to ensure clean operation.

• Confirm pipe size and thread type (1 in. FPT) before purchase
• Install with correct flow direction and secure threaded fittings
• Wire solenoid to a 24 VAC controller terminal and test operation
• Inspect scrubber filter and diaphragm during first-season setup

Who is this for: The Orbit L-Series 1 in. FPT Automatic Sprinkler Valve is aimed at homeowners, landscapers, and irrigation contractors who need a dependable inline valve for sprinkler or drip zones. It suits retrofit projects replacing existing valves in PVC systems, preassembled valve manifolds, or new installations where easy servicing, compatibility with common 24 VAC controllers, and reduced clogging risk are priorities.
