Little Giant submersible pump 115V 300 GPH small manual — oil-filled motor, epoxy-coated die-cast housing for reliable low-head re

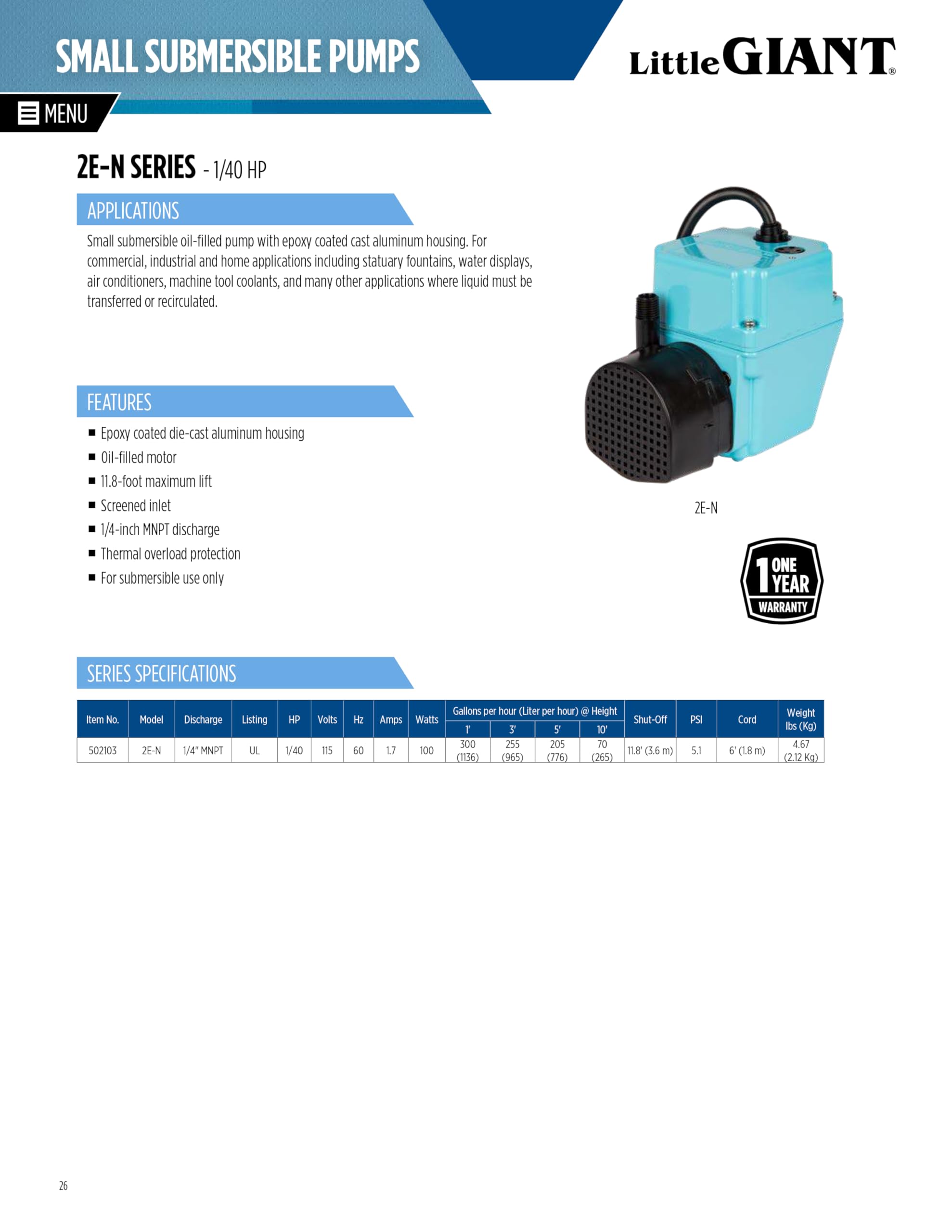

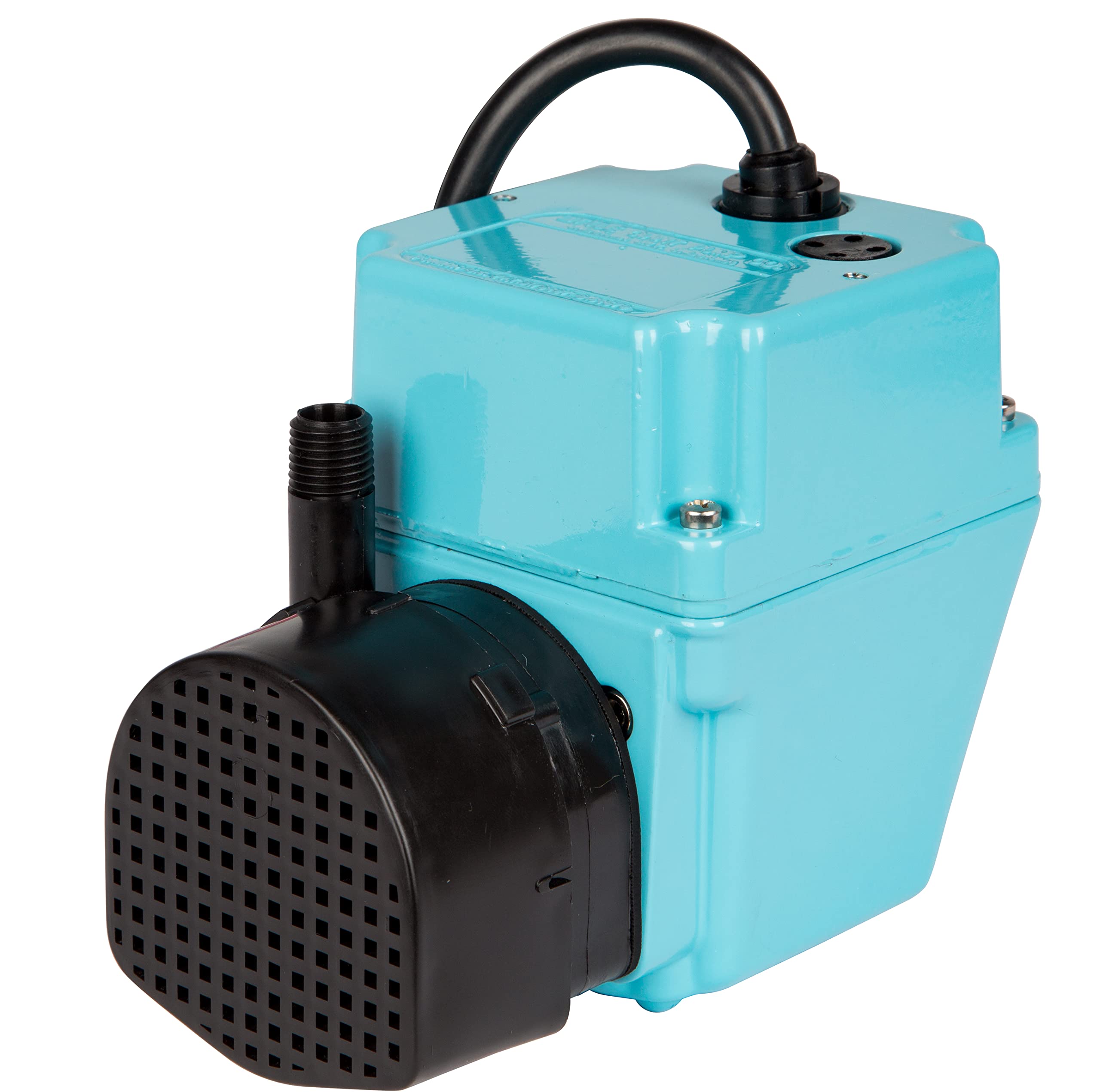

The Little Giant 2E-N is a compact, oil-filled submersible pump delivering up to 300 GPH for small fountains, water displays, air conditioners, and general recirculation tasks.

This rugged, commercial-grade unit pairs a rust-resistant epoxy-coated die-cast aluminum housing with an oil-filled motor to keep performance steady in continuous or intermittent submersion. Designed for installations that need reliable low-head pumping, the 2E-N offers a screened intake to protect the impeller, a 1/4-inch MNPT discharge, and thermal overload protection for safer operation on standard 115V circuits.

How much water can this pump move and how high will it lift it?

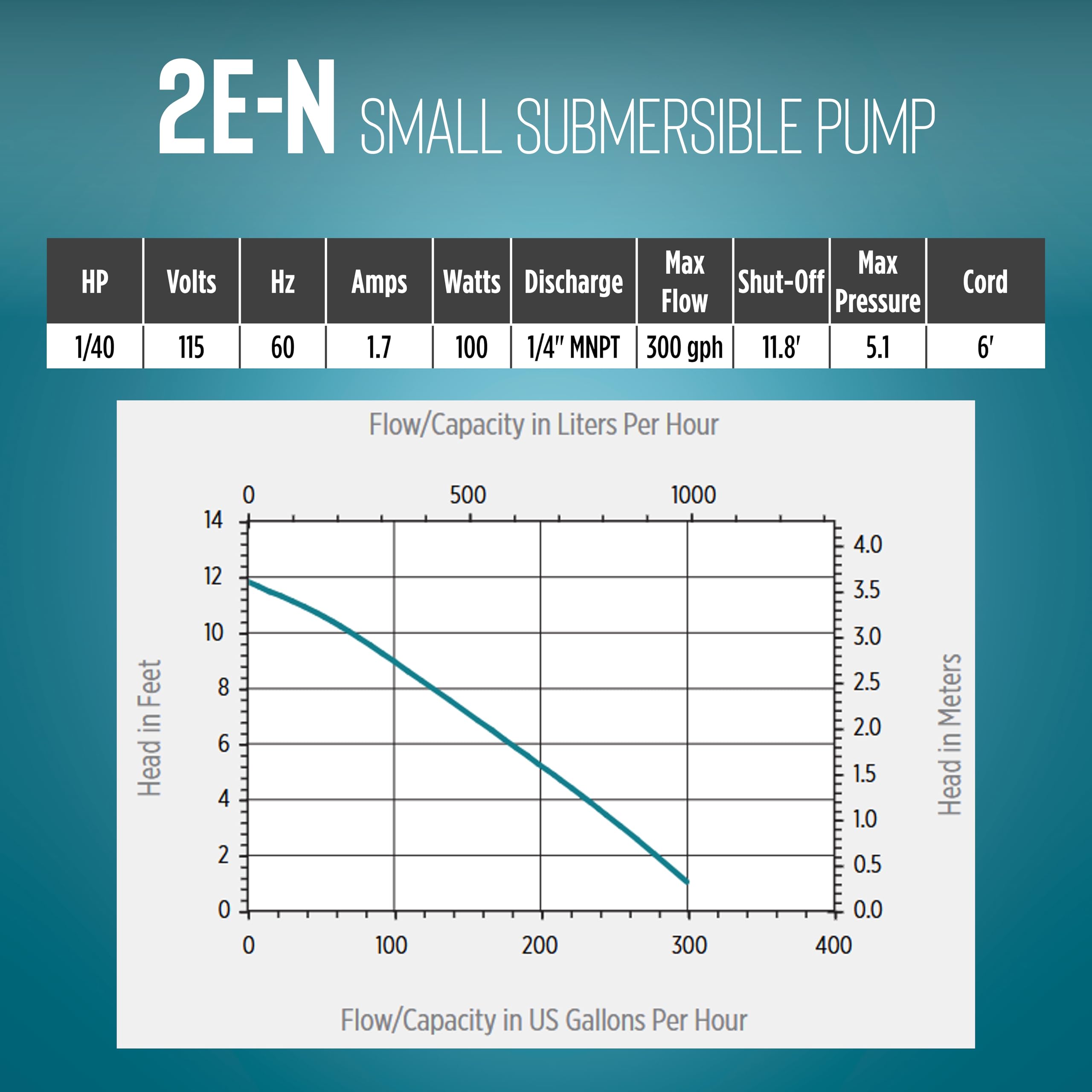

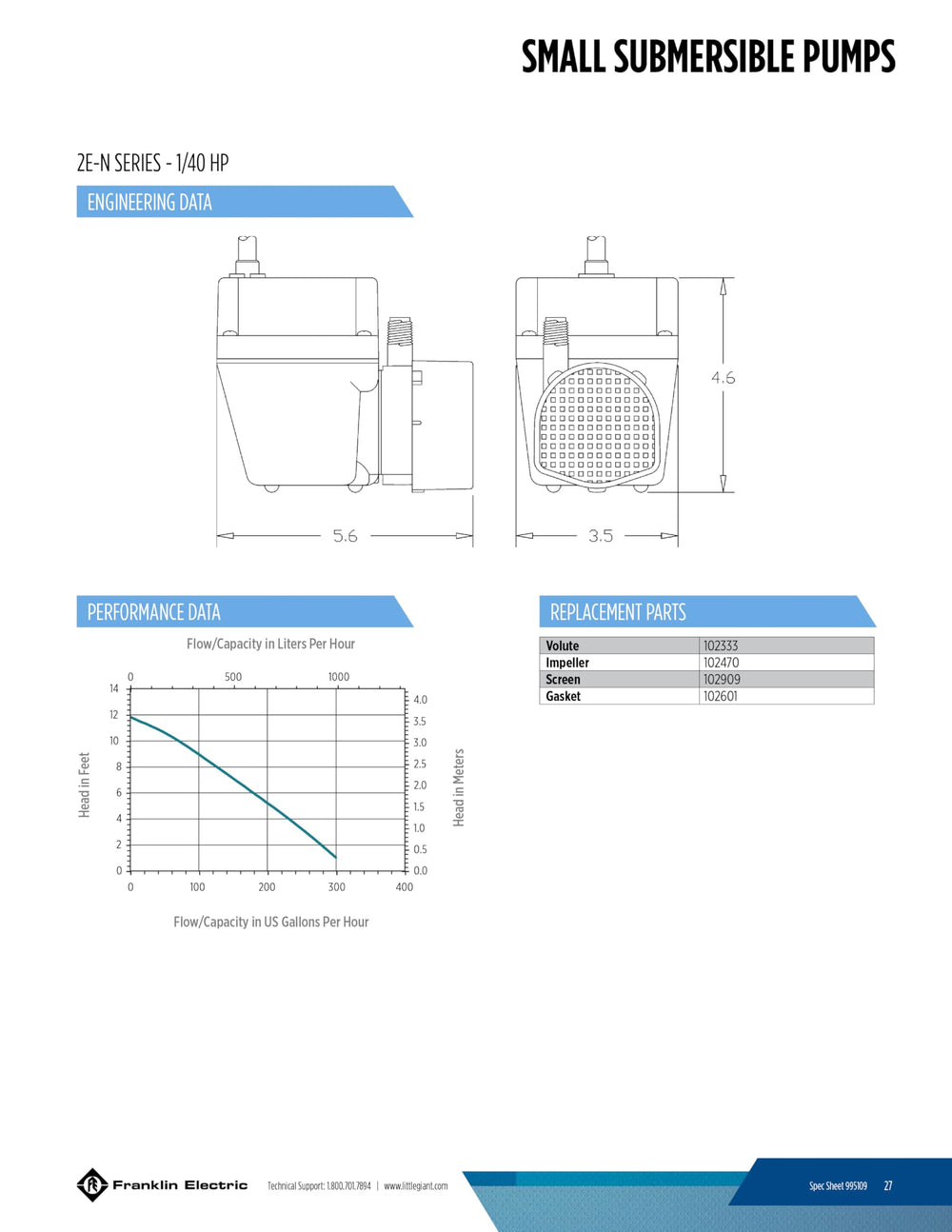

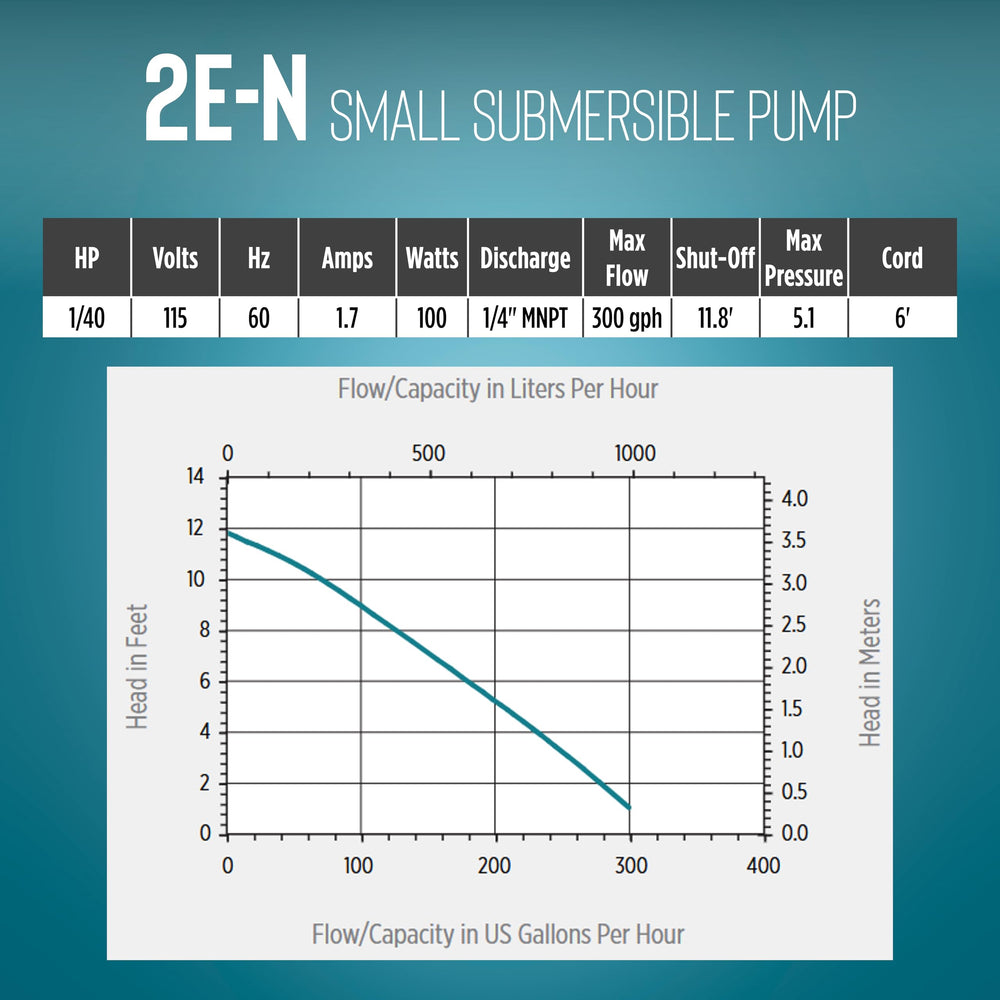

The 2E-N pumps up to 300 gallons per hour at a 1-foot head and reaches a maximum shutoff head of 11.8 feet. That makes it suitable for short vertical lifts and horizontal recirculation where moderate flow is required.

• Peak flow: 300 GPH at 1 ft head
• Maximum lift (shutoff head): 11.8 ft
• Max pressure: approximately 5.1 PSI
• Discharge connection: 1/4-inch MNPT for common fittings

What materials and safety features help it last in wet environments?

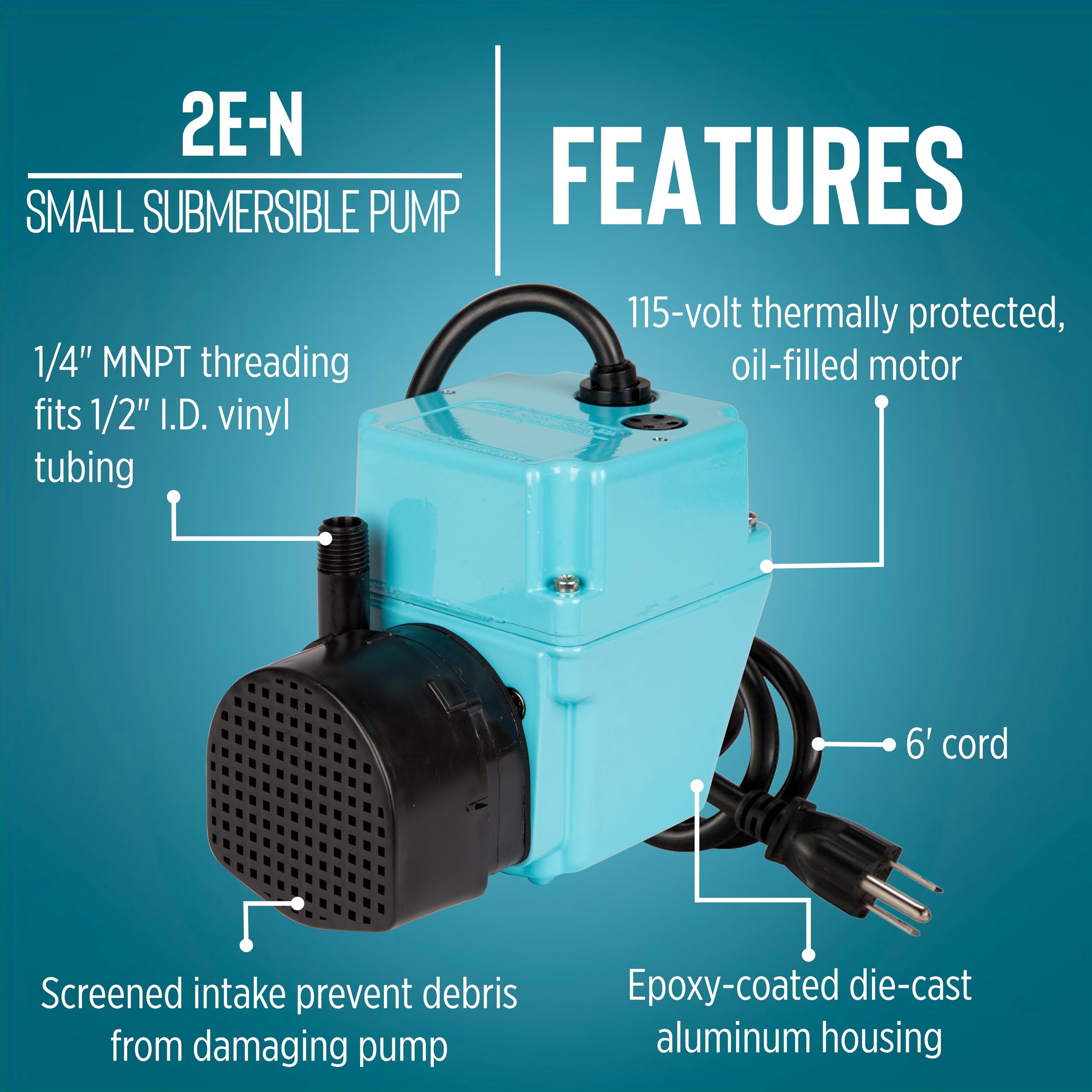

Little Giant built the 2E-N with durability in mind: epoxy-coated die-cast aluminum shields the motor and housing from corrosion while an oil-filled motor reduces heat stress. The unit also includes thermal overload protection to guard against overheating under heavy load.

• Epoxy-coated die-cast aluminum housing for rust resistance
• Oil-filled motor for cooler operation and longer life
• Thermal overload protection to prevent motor damage

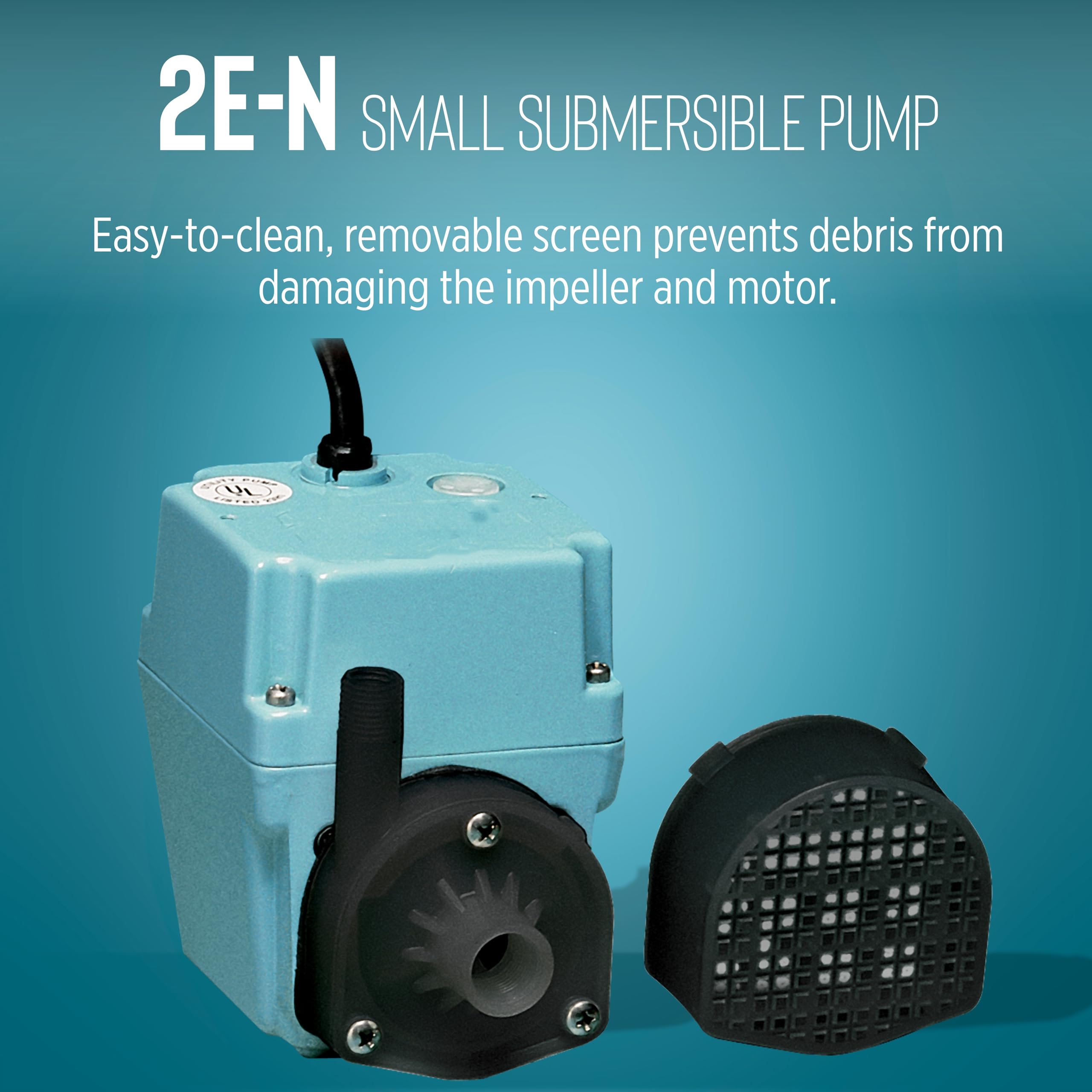

• Screened intake to keep debris away from the impeller

Where can I use this pump and what fluids or temperatures does it handle?

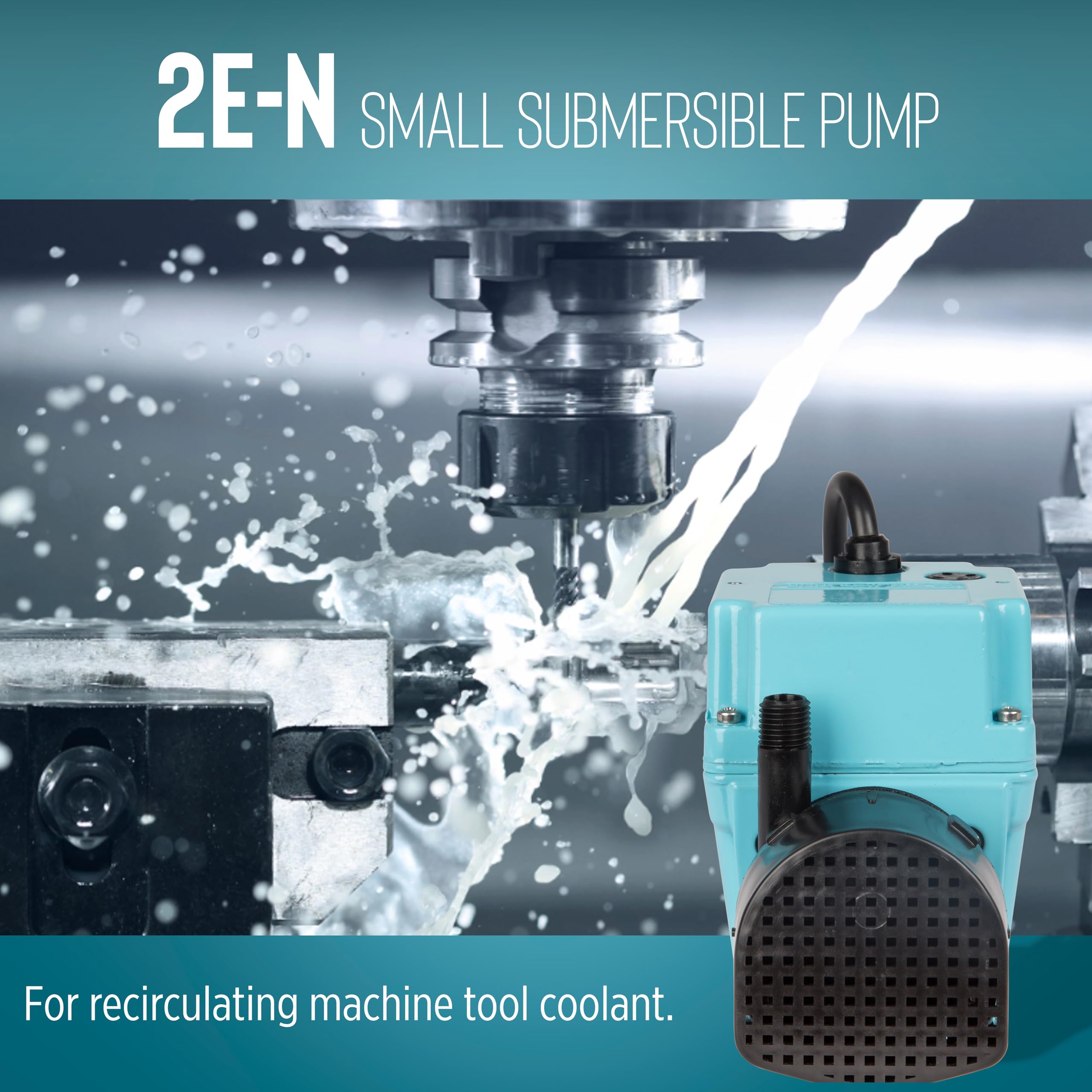

This pump is meant for water and similar non-corrosive liquids in household, commercial and light industrial settings. It handles intermittent liquid temperatures up to 120°F, making it suitable for fountains, HVAC condensate removal, machine-tool coolant recirculation, and decorative water features.

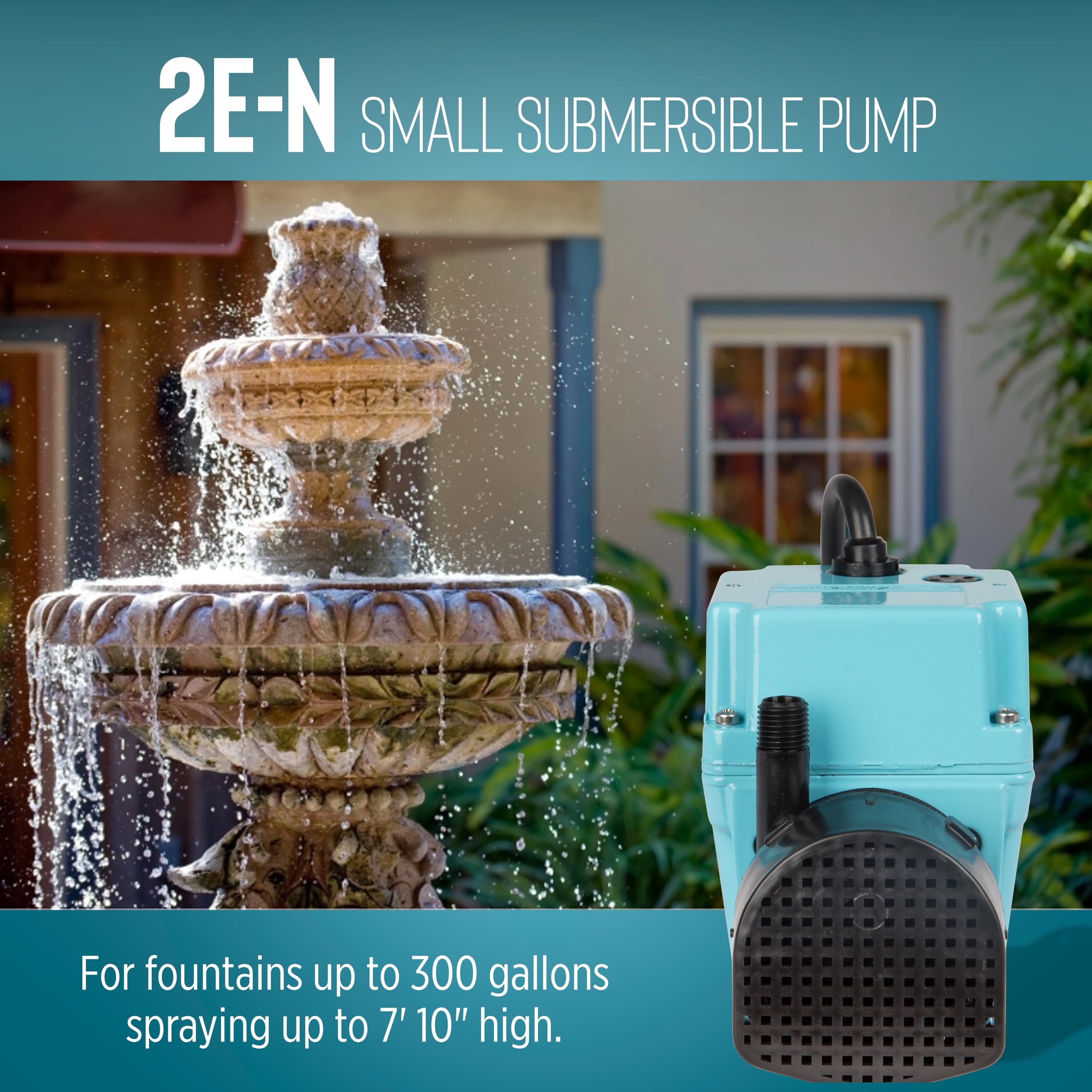

• Ideal for statuary fountains, water displays, and decorative features
• Suitable for air conditioner condensate and coolant recirculation
• Intermittent liquid temperature tolerance up to 120°F
• Not for flammable, highly corrosive, or viscous liquids

What are the electrical and installation details I should know?

The 2E-N runs on 115 volts, draws about 1.7 amps (100 watts), and comes cCSAus listed for safety. It includes a six-foot power cord and a 1/4-inch MNPT discharge; standard plumbing fittings and flexible tubing can be used for quick installation in many small systems.

• Power: 115V, 100W, 1.7A — cCSAus listed
• Cord length: 6 feet for flexible placement
• Discharge: 1/4-inch MNPT compatible with common adapters
• Impeller/volute: durable nylon construction

Who this is for: The Little Giant 2E-N fits buyers who need a compact, dependable submersible pump for small circulation or transfer jobs—landscapers and fountain installers, HVAC technicians needing a condensate solution, machinists recirculating coolant, or homeowners maintaining water features. If you require modest flow at low to moderate lift and value corrosion resistance and built-in electrical protection, the 2E-N is a practical, easy-to-install choice.
