Link Solar Solar Panel Roof Mounting Kit — 2-Panel, Anodized Aluminum Rails & Stainless Hardware

A complete roof mounting kit for two framed solar panels that includes rails, mid and end clamps, seals, and fasteners for secure rooftop installation.

This Link Solar two-panel roof mounting kit supplies the core hardware needed to mount a pair of standard framed photovoltaic (PV) modules side-by-side on pitched or flat roofs. Built from anodized aluminum rails and corrosion-resistant stainless steel hardware, the kit is designed for straightforward DIY installation and long-term outdoor exposure. It supports panels 30–35 mm thick and includes anti-lift features plus rubber seals to keep the array watertight and stable in windy conditions.

How does this kit attach solar panels to different roof types?

The kit uses a rail-and-clamp system that pairs with roof-specific anchors or flashing (not included) to fasten rails to asphalt shingle, metal, or tile roofs. Panels mount to the rails with mid clamps between modules and end clamps on the outer edges, while rubber seals and self-drilling screws create a weather-resistant connection.

• Includes 6 short mounting rails (4.72 in) sized for two-panel layouts.
• Self-drilling screws simplify fastening to metal or wood roof structure.
• Rubber seals reduce water intrusion at penetration points.
• Compatible with standard framed PV modules 30–35 mm thick only.

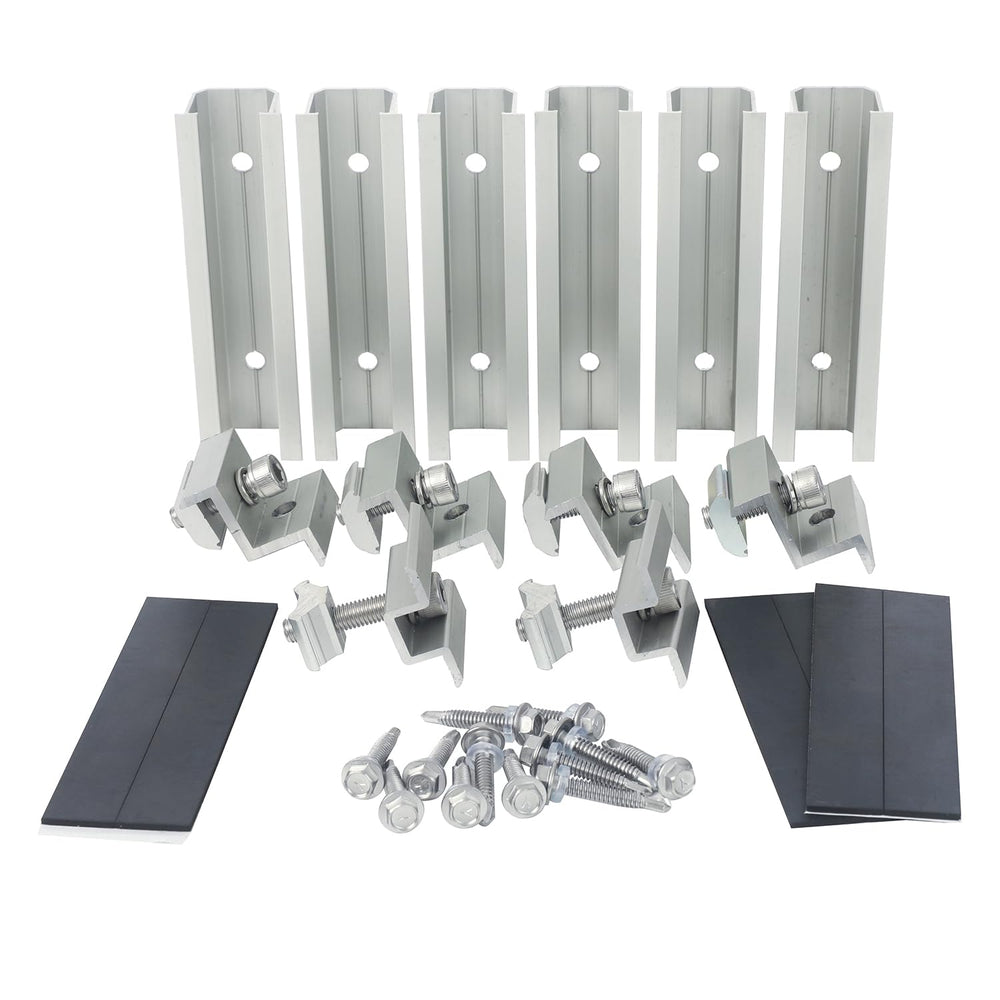

What parts are included and how do they secure panels?

This package contains the main rail segments plus mid and end clamps that physically lock panels to the rails. Anti-slip grooves in the anodized rails keep modules from shifting, while stainless-steel clamp hardware and screws hold the array tight against wind uplift and movement.

• 4 sets of end clamps to anchor outer panel edges securely.
• 2 sets of mid clamps for a flush, gap-minimized join between panels.
• 12 self-drilling screws for rapid rail-to-roof or rail-join attachment.
• 6 rubber seals for waterproofing around screw penetrations and clamp bases.

How durable is the system in outdoor conditions?

Materials are chosen to resist corrosion and mechanical stress: anodized aluminum rails lower oxidation risk, and stainless steel fasteners remain robust in wet or salty environments. Anti-lift clamp designs and gasketed seals reduce the chance of water ingress and help the array withstand gusting winds.

• Anodized aluminum rails for long-term rust resistance.
• Stainless-steel hardware for tensile strength and corrosion protection.
• Anti-slip grooves and anti-lift clamps prevent panel movement.
• Seals protect mounting points from water and weather exposure.

How simple is installation for a DIYer?

The system is optimized for straightforward assembly: rails and clamps are pre-sized for two-panel side-by-side layouts and components use self-drilling screws to reduce specialized tool needs. Basic electrical safety and roof flashing compatibility knowledge are required; when in doubt, consult a certified installer for roof penetrations and local code compliance.

• Pre-cut short rails suited for compact two-panel arrays.
• Self-drilling screws cut installation time compared with tapped bolts.
• Height-adjustable clamps accommodate 30–35 mm framed modules.
• Clear mechanical steps: rail layout, rail fastening, clamp placement, sealing.

Who is this for: Homeowners, cabin or RV owners, and small off-grid project builders who need a compact, rugged mounting solution for two framed solar panels. This kit fits DIY-savvy users who have basic roofing and electrical awareness and who plan side-by-side installations of standard 30–35 mm framed PV modules. It is not intended for frameless panels or large commercial arrays—consult a professional for larger or custom roof layouts.
