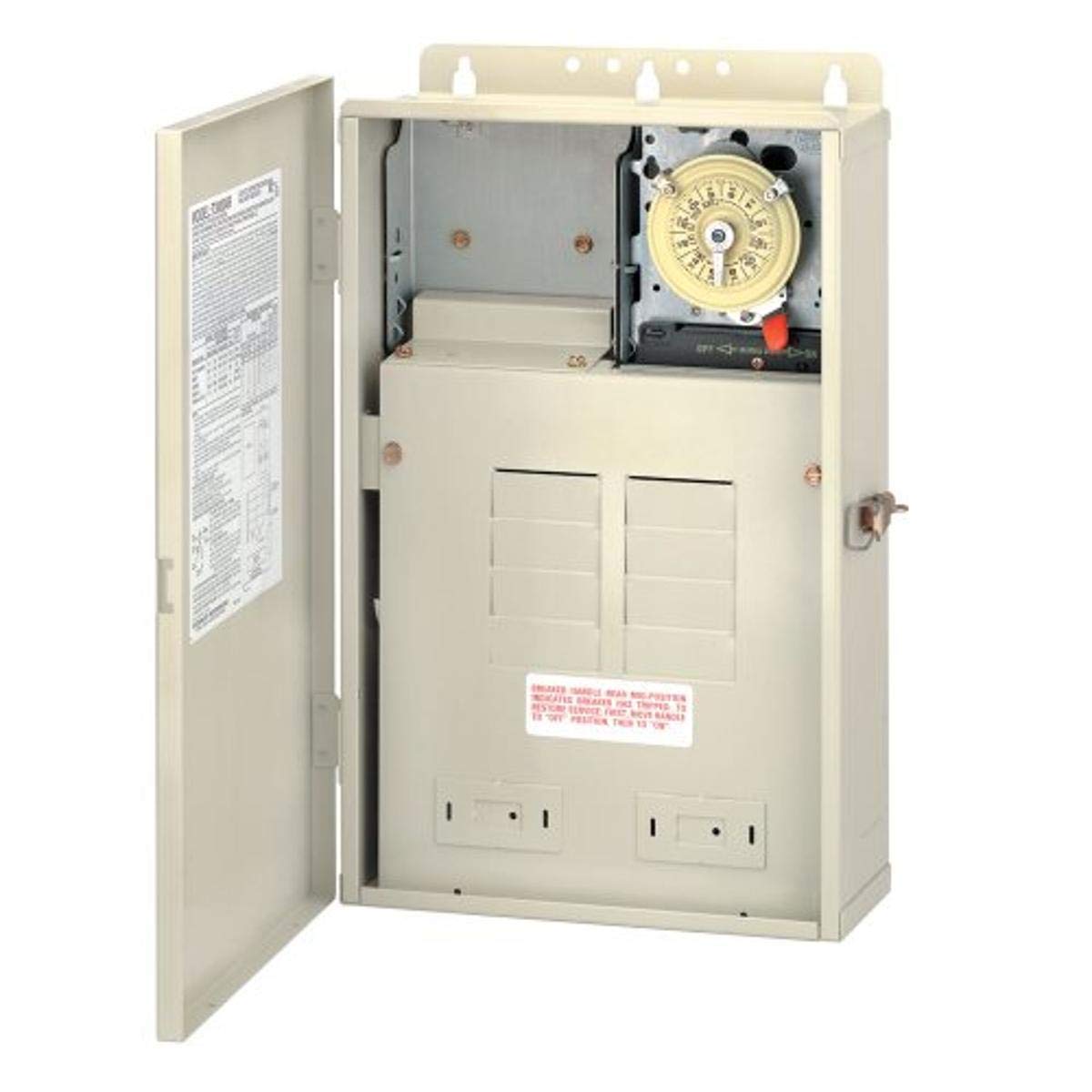

Intermatic Pool Load Center T30004R 100A with T104 Timer — 8‑Pole Breaker Base, NEMA 3R Weatherproof

The Intermatic T30004R is a weatherproof 100A pool and spa load center with an included T104 timing mechanism and an 8-pole breaker base for centralized outdoor control.

The T30004R combines a compact, NEMA 3R-rated enclosure with a versatile breaker base and T104 timer to simplify wiring and control for residential pool and spa electrics. Designed to accept a range of Intermatic mechanism modules, this panel reduces the need for additional junction boxes and offers a tidy, code-friendly solution for 240 VAC, 60 Hz systems. It carries CSA approvals for both the U.S. and Canada and is built to withstand outdoor exposure while keeping critical components organized and accessible.

How does the T30004R simplify pool and spa electrical setup?

Instead of running multiple junction boxes and separate disconnects, the T30004R provides a single enclosure that handles main load distribution and time control. The included T104 timer gives scheduled control, while the internal breaker base accepts various Intermatic modules for pumps, lights and accessories.

• Includes T104 timing mechanism for scheduled on/off control
• 8-pole breaker base supports multiple branch circuits
• Accepts Intermatic P1353ME, P4243ME, T100M, RC2000M, PF1000M modules
• Reduces external junction box and wiring clutter

What electrical ratings and approvals should I know about?

The panel is rated for 240 VAC at 60 Hz and supports up to 100 amps, making it suitable for most residential pool and spa systems. CSA approvals mean the unit complies with safety standards recognized in both Canada and the United States.

• 100A maximum load center capacity
• 240 VAC, 60 Hz operating voltage
• CSA listed for U.S. and Canadian installations
• NEMA 3R enclosure for outdoor protection against rain and snow

How durable and compact is the enclosure for outdoor use?

The T30004R’s enclosure is built for outdoor conditions and designed to protect internal components from weather exposure. Its compact footprint helps installers mount the panel in tight spaces without sacrificing breaker capacity or timer access.

• NEMA 3R-rated weatherproof housing for outdoor environments
• Compact dimensions: approximately 10-7/8" W x 4-3/4" D x 16-7/8" H
• Sturdy construction to protect electrical mechanisms and wiring
• Accessible interior layout for streamlined wiring and servicing

Which accessories and modules are compatible with this control panel?

The panel’s internal design accepts a range of Intermatic control mechanisms so you can match functions to your pool’s needs—pump switching, lighting control, timeclock operation, and additional automation modules. This flexibility allows custom configurations without changing the enclosure.

• Compatible with Intermatic P1353ME and P4243ME series
• Works with T100M and RC2000M timing/relay mechanisms
• Supports PF1000M series for specialized controls
• Mix-and-match modules enable tailored pool/spa setups

Who is this for? The Intermatic T30004R is aimed at electricians, pool contractors and knowledgeable homeowners who need a reliable, compact load-center for residential pool and spa electrical systems. It’s especially useful when you want a single, code-compliant enclosure that accepts Intermatic module components, offers scheduled control via the T104 timer, and minimizes separate junction boxes during installation. Choose this panel when you need organized, weather-resistant control and the flexibility to expand or reconfigure circuits with proven Intermatic mechanisms.
