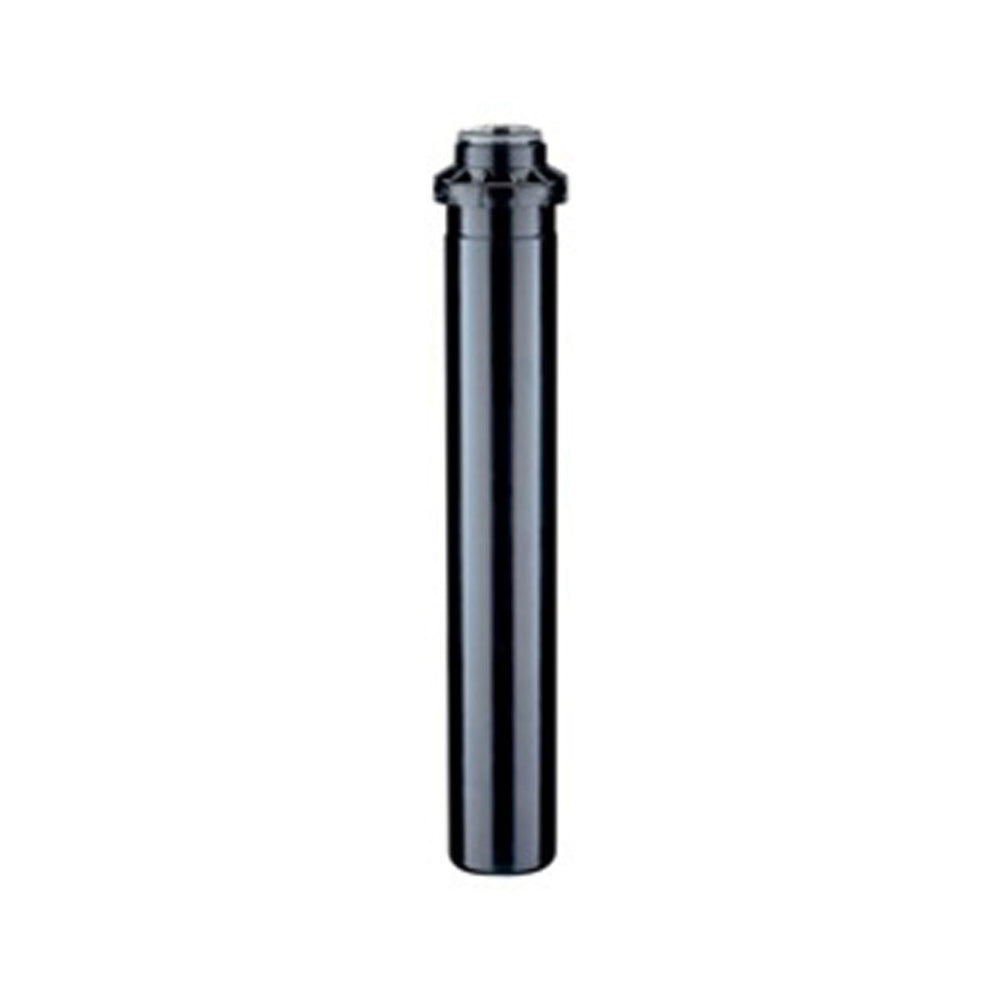

Hunter PGP Ultra 12-Inch Pop-Up Rotor Sprinkler with Check Valve — Non-Strippable Drive, Automatic Arc Return

The Hunter PGP12CV PGP Ultra is a professional-grade, 12-inch pop-up rotor sprinkler with a built-in check valve, rugged non-strippable drive and automatic arc return for reliable irrigation performance.

Built from three decades of field feedback and laboratory testing, the PGP Ultra refines the classic PGP rotor into a more installer- and maintenance-friendly head. It combines a durable drive mechanism, multiple nozzle and radius choices, and a check valve to reduce low-head drainage—making it a flexible option for a wide range of residential and commercial landscapes.

How does the PGP Ultra improve reliability compared to older rotors?

Hunter redesigned the internal drive to resist stripping and added an automatic arc return so the spray returns to its programmed arc after service or interruption. These mechanical improvements reduce downtime and minimize the need for delicate adjustments after maintenance.

• Non-strippable drive reduces wear during manual adjustments.
• Automatic arc return restores original settings after rotation interruption.
• Robust housing resists impact and environmental wear.

What nozzle and coverage options are available for varying landscapes?

The PGP Ultra supports an expanded nozzle family with 22 options across multiple radii, allowing precise matching of flow and throw to turf, shrub, or mixed planting areas. Installers can choose nozzles to balance head-to-head coverage, pressure limitations, and water budget goals.

• 22 factory nozzle options for fine-tuned radius and flow control.
• Multiple radius choices to fit small beds up to larger turf areas.
• Headed slot and set screw enable secure nozzle positioning under pressure.

Does the built-in check valve make a practical difference?

The integrated check valve prevents low-head drainage when the zone shuts off, keeping water in the lateral lines and preserving uniform coverage on slopes or sites with elevation changes. This reduces puddling and unnecessary run times on low spots.

• Check valve prevents post-run drainage from the riser.
• Improves coverage consistency on slopes and variable elevations.
• Helps avoid localized overwatering and surface runoff.

How does this sprinkler help installers save time on the job?

Design features focus on fast, repeatable setup and service: the non-strippable drive lowers the risk of damage during adjustments, the automatic arc return simplifies reassembly, and the headed slot with set screw secures nozzles quickly. These traits reduce callbacks and on-site tuning time.

• Durable internals minimize risk during field adjustments.
• Automatic arc return shortens post-service recalibration.
• Secure nozzle attachment speeds nozzle swaps and installs.

Who is this for: Landscapers, irrigation contractors, and property managers who need a dependable, serviceable rotor for medium-to-large turf and mixed planting areas. The PGP12CV is suited to sites that benefit from a check valve—such as sloped properties or areas with low-head drainage concerns—and to projects where robust mechanics and a wide range of nozzle options reduce installation and maintenance time.
