Generac 7006 100-Amp Load Manager 240V Single‑Phase — Automatic Frequency Sensing, NEMA 3R Outdoor/Indoor

The Generac 7006 100-Amp Load Manager is a self-contained module that automatically sheds and restores large appliance loads so your single‑phase 240V standby generator stays within safe operating limits.

If your generator must run essential circuits while supplying high-demand appliances, the Generac 7006 smart module helps prevent overloads by monitoring generator frequency and disconnecting or reconnecting loads as needed. It works without extra control wiring, fits indoor or outdoor locations, and supports up to eight modules on one system for staged management of multiple heavy loads.

How does the 7006 keep my generator from overloading?

The module senses generator output frequency and uses that measurement to detect overload conditions. When frequency dips below a safe threshold, the contactor opens to shed the connected appliance; when frequency stabilizes, the module reconnects based on its priority setting.

• Built-in frequency sensing — no separate controller or wiring to the transfer switch required
• Automatic contactor opens on low Hz and recloses after recovery
• External LED codes indicate connection, startup delay, and lockout states

Which generators and systems are compatible with this load manager?

The 7006 is designed for single-phase standby generators that produce standard 60 Hz AC output and for use on 240V single-phase systems only. It will not work with three-phase electrical systems, but it is compatible with Generac and many other single-phase generator brands.

• Compatibility: any single-phase 60 Hz standby generator (240V systems only)
• Not for three-phase setups — verify system type before purchase
• Works with air-cooled and liquid-cooled Generac models and non-Generac single-phase generators

How do the priority settings and lockout mode function?

Each module accepts a priority number from 1 to 8; lower numbers reconnect first after a shed event. Priority reconnection is staggered — Priority 1 reconnects five minutes after shed, and each higher priority adds a 15‑second delay — and a lockout option can permanently prevent a load from using generator power while still allowing normal utility operation.

• 8-level priority dial — unique priority required per module to avoid conflicts
• Priority timing: Priority 1 = 5 minutes; each step adds 15 seconds
• Lockout mode blocks appliance on generator power but not on utility power

What installation and testing features should I expect?

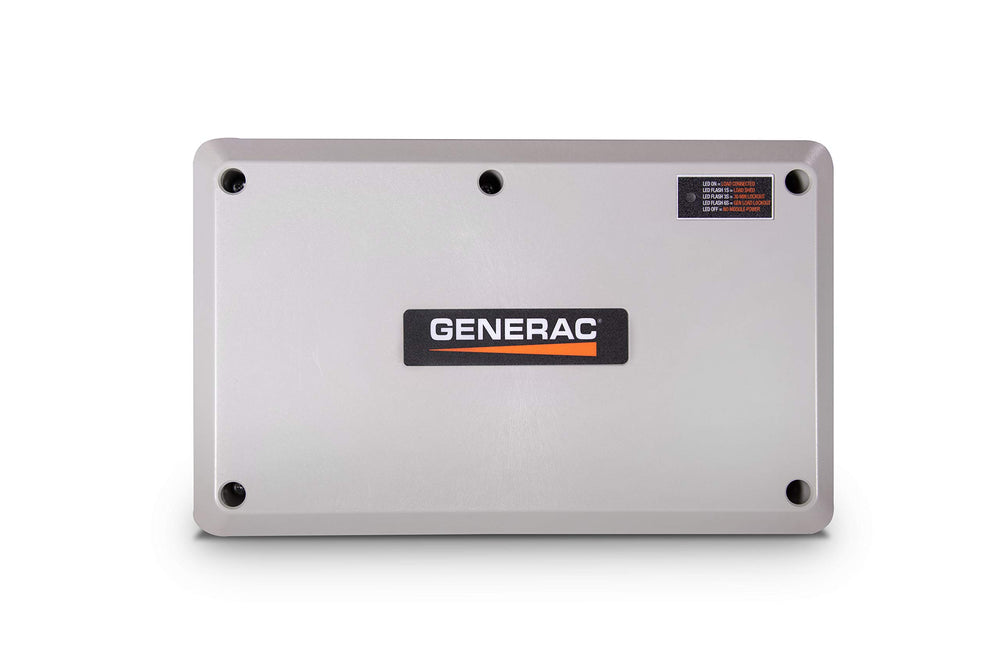

The 7006 ships as a sealed NEMA 3R enclosure suitable for indoor or outdoor mounting, rated for a wide temperature range. A built-in test button simulates shed events so you can confirm operation without losing utility power, but professional installation is strongly recommended due to line‑side wiring and code compliance requirements.

• NEMA 3R enclosure resists rain, sleet, and ice; dimensions 7.0"H x 11.4"W x 5.3"D
• Inline 100A contactor for direct appliance control; no extra controller needed
• External LED provides five diagnostic states; included priority label decal and manual

Who is this for? The Generac 7006 is ideal for homeowners, electricians, and contractors who need to manage large appliances during outages—hot water heaters, central AC, pool pumps, and HVAC systems—without upgrading the generator or manually switching loads. It’s a practical solution for single‑phase 240V standby setups where maintaining generator health and prioritized power delivery matters. For safe, code‑compliant installation and optimal performance, use a licensed electrician experienced with transfer switches and line‑side wiring.
