CheeMuii replacement lawn mower deck gauge wheels 4-pack — 5" OD x 2-3/4", complete hardware kit, grease zerks

CheeMuii 4-pack deck gauge wheels kit provides a complete, OEM-style replacement set (wheels, bushings, bolts, lock nuts and gaskets) compatible with 48"–72" mower decks including AM125172 and similar models.

When a deck gauge wheel wears out it affects cut height consistency and can stress the mower deck. This CheeMuii kit replaces four 5" OD x 2-3/4" wheels and includes the matching hardware and grease zerks so you can restore smooth rolling and correct deck support in one job. The set fits a wide range of 48", 54", 60", 62" and 72" decks and is built from wear-resistant materials to stand up to regular yard use.

How will these gauge wheels fit my mower deck?

These wheels were designed to match standard mower-deck mounting dimensions used by many brands and series. The kit supplies both bushing sizes and two styles of bolts so you can select the correct pieces for your specific deck. Check bore and hub measurements against your original parts for a quick confirmation.

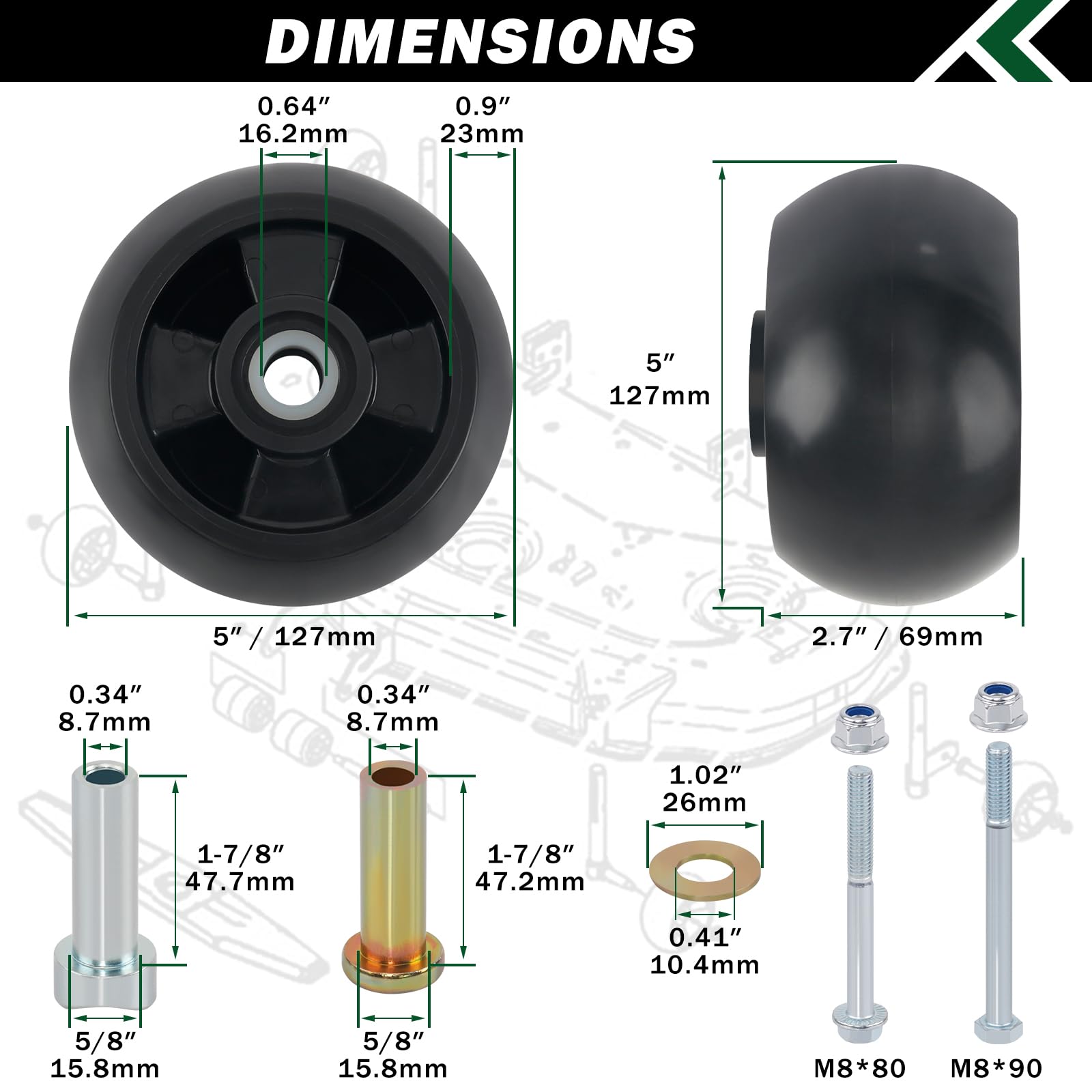

• Wheel outside diameter: 5"; width: 2-3/4"
• Bore without bushing: 5/8"; with bushing: 3/8"
• Hub diameter: 2-1/2" to match common spindles
• Compatible with AM125172, AM124706 and many 200–700 series decks

What hardware and accessories come in the set?

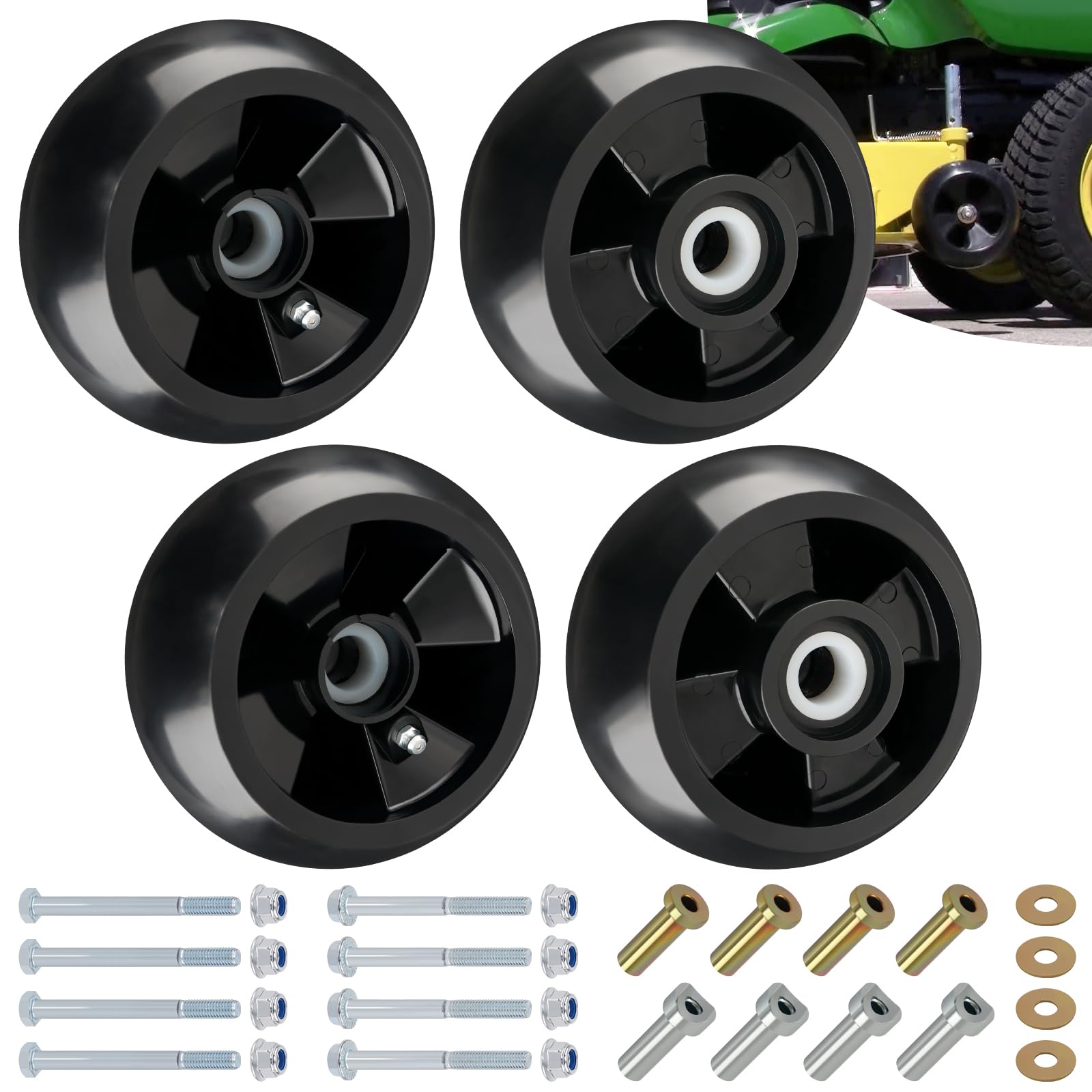

The kit is supplied as a complete replacement package so you won’t need to source extra parts. Each wheel arrives prepaired to accept a grease zerk and each package contains two styles of bolts and matching bushings to cover most mounting configurations. Metal gaskets and lock nuts are included to reduce vibration and secure the fit.

• 4 gauge wheels with installed bushings and grease zerks
• 8 bolts (two different styles) and 8 corresponding bolt bushings
• 8 lock nuts plus 4 metal gaskets
• Everything necessary for a four-wheel replacement

What materials and durability can I expect?

CheeMuii builds these wheels from a high-strength EVA compound that resists abrasion, aging and heat; steel bolts and gaskets are hardened to resist impact and corrosion. The combination of resilient wheel material and rugged hardware delivers longer service life under normal lawn-mower conditions compared with cheaper alternatives.

• EVA wheel body for anti-friction and weather resistance
• Grease zerks included for simple lubrication and maintenance
• Hardened steel bolts and gaskets for corrosion protection
• Manufactured and tested to match OEM replacement standards

How easy is installation and maintenance?

Replacing gauge wheels is a straightforward repair that can be completed with basic hand tools. The kit includes multiple bushings so you can choose the correct fit; grease zerks allow quick lubrication after installation. If you prefer visual help there are many step-by-step repair videos that show the removal of old wheels and fitting of new ones.

• Remove old wheels by releasing the deck rod and slide off the hardware
• Select proper bushing, fit wheel, insert bolt and secure with lock nut
• Use the grease zerk to lubricate the hub after mounting
• Typical install time: about 15–30 minutes for four wheels

Who is this for: This CheeMuii 4-pack is for homeowners and grounds crews who need a complete, durable replacement for worn deck gauge wheels on mid- to large-sized lawn mowers. It’s suited for owners of 48"–72" mower decks, owners replacing AM125172 or compatible parts, and anyone who prefers a full hardware kit so the job can be finished in a single visit to the toolbox.
