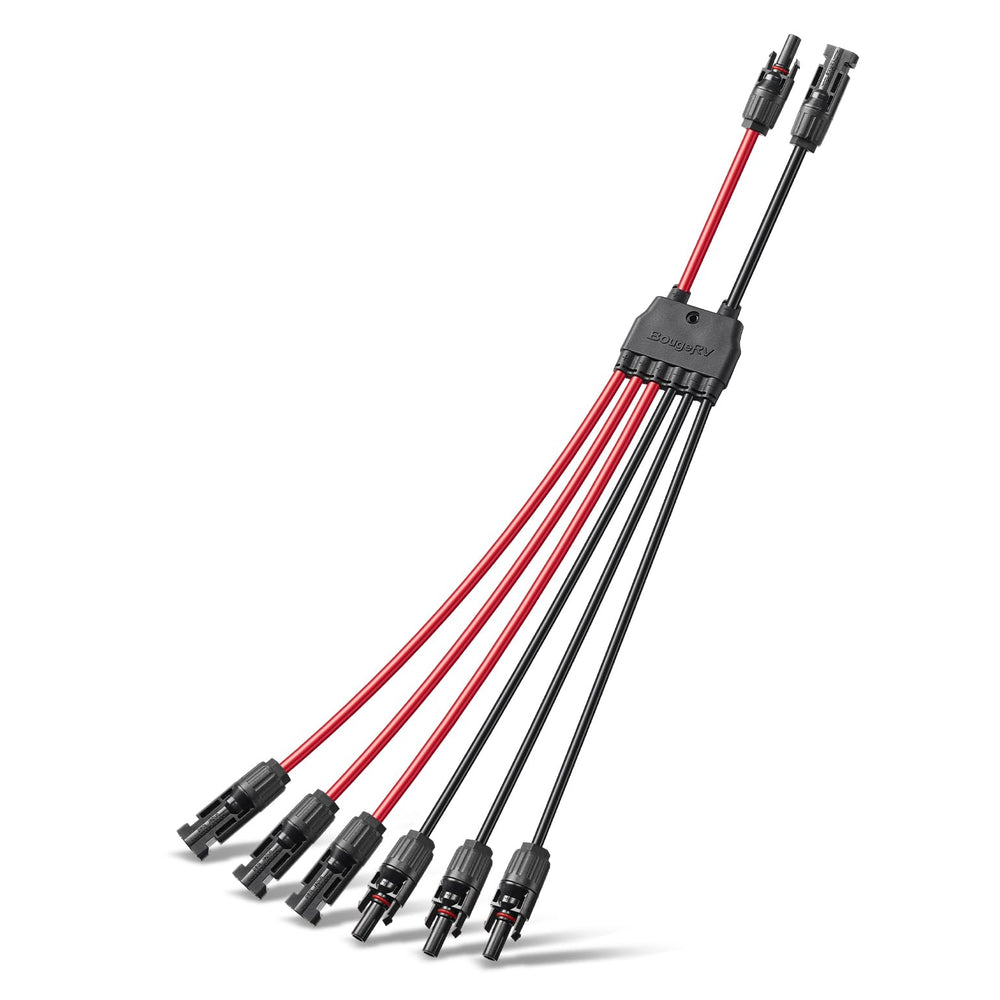

BougeRV Solar Parallel Connectors 2-to-6 Y-Branch 10AWG Cable — 30cm Branches, IP68 Waterproof

BougeRV Solar Parallel Connectors are a Y-branch 2-to-6 parallel cable set (10AWG main, 12AWG branches) designed to join multiple solar panels quickly and reliably for outdoor PV arrays.

These cables simplify solar panel wiring by combining two Y-branch leads into a single harness with color-coded positive (red) and negative (black) conductors, longer 30cm branch lengths, and robust IP68-rated connectors. Built with XLPE insulation, tinned copper, and reinforced overmolding, the assembly meets UL and TÜV standards for many conventional solar connector types and is rated to DC 1000V for typical residential and mobile solar setups.

How do these connectors speed up panel installation?

The extended 30cm branch lengths reduce the need for extra extensions and make aligning panels easier during parallel wiring. Color-coded leads and pre-mated Y branches minimize mistakes and cut installation time for both beginners and pros.

• 30cm branch cables versus typical 20cm—fewer extension cables required
• Pre-assembled MFFF/FMMM Y branches for immediate use
• Red/black color coding to lower wiring errors during installation

Are these cables durable enough for outdoor use?

Yes — the connectors use IP68-rated housings, XLPE insulation, and tinned copper conductors for corrosion resistance and high temperature tolerance. A 2cm reinforced overmolding adds pull resistance and weather sealing where cables meet the connector.

• IP68 connector rating for dust and water resistance
• XLPE insulation and tinned copper for long-term outdoor performance
• 2cm overmolding to reduce strain and boost waterproofing

What electrical specifications and compatibility should I expect?

The main trunk is 6mm² (10AWG) for lower voltage drop, while each branch uses 4mm² (12AWG), supporting standard parallel configurations. Rated to DC 1000V and tested across a wide temperature range, the cable is compatible with most conventional solar connectors except some proprietary Amphenol or nonstandard types.

• Main conductor: 6mm² (10AWG); branch conductors: 4mm² (12AWG)
• Rated voltage: DC 1000V; operating temperature range: -40°F to 230°F
• Compatible with 10–14AWG panel leads and common MC-style connectors

How does BougeRV support this product after purchase?

BougeRV includes 18 months of tech support to help with fit, wiring questions, or troubleshooting during setup. If parts are missing or you encounter issues, customer support is available to guide or arrange replacements.

• 18-month technical support for installation and troubleshooting
• Guidance on connector compatibility and wiring best practices
• Replacement assistance if connectors or cables are defective

Who is this for: installers, RV and van lifers, tiny-home owners, and DIY solar hobbyists who want to parallel-connect 2–6 panels quickly without custom crimping or extra extension cables. The BougeRV 2-to-6 Y-branch parallel cable is best for standard MC/MC4-compatible panels and for anyone seeking a weatherproof, time-saving harness for rooftop, portable, or stationary solar arrays.
