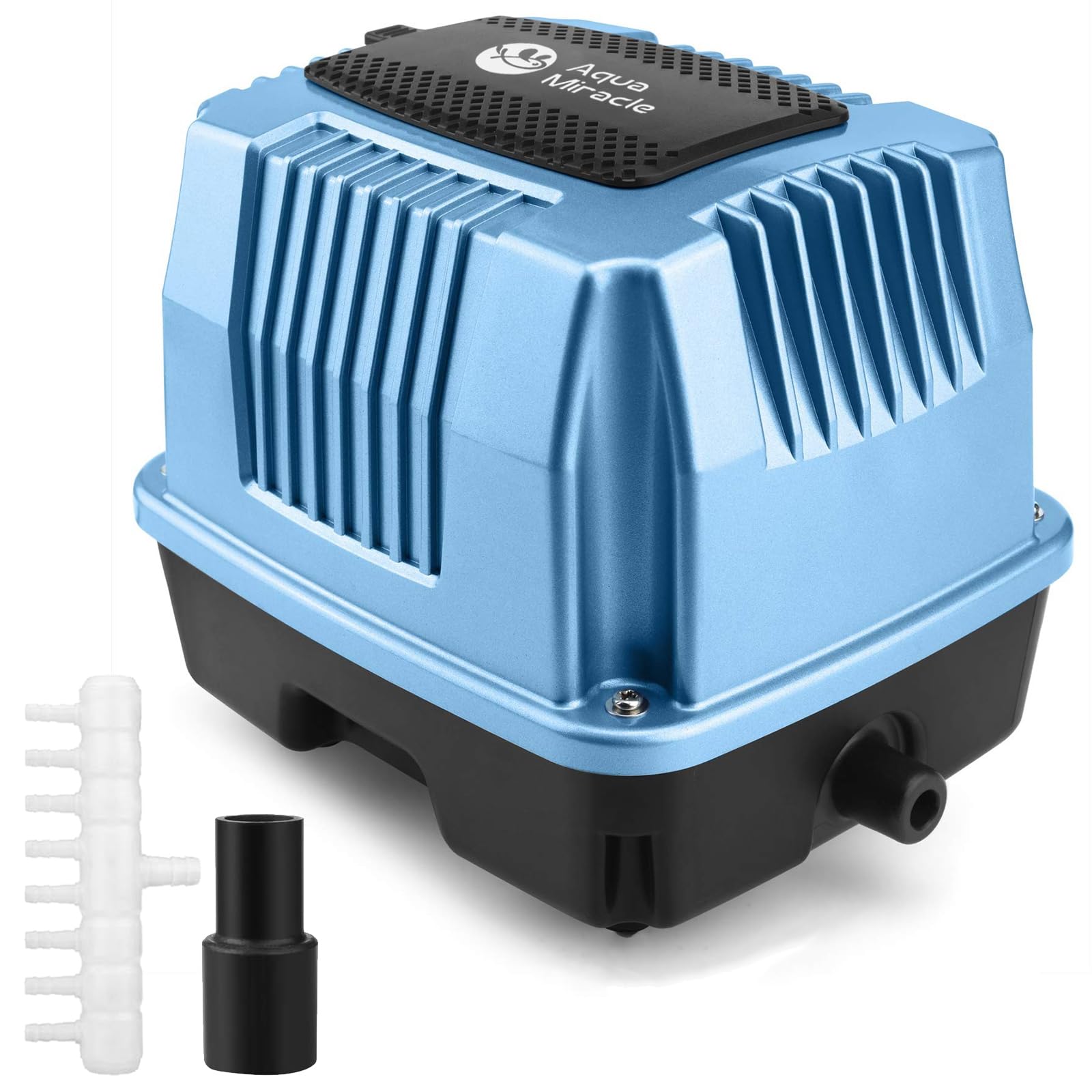

AquaMiracle Super Powerful Linear Air Pump AP-40 635 GPH — Quiet, Energy-Efficient Pond Aerator

AquaMiracle AP-40 is a high-output linear air pump delivering 635 GPH (40 LPM) and 0.028 MPa (4.06 psi) for ponds, hydroponics, septic aeration and aquaculture.

Built for continuous service where strong airflow and steady pressure matter, the AP-40 pairs a full-copper motor and a sulfurized rubber diaphragm to maximize efficiency and longevity. Its layered noise-reduction design and expanded housing surface manage heat and sound so you get dependable aeration without excessive energy use or disruptive vibration.

How much airflow and pressure does the AP-40 provide?

The AP-40 produces a flow rate of 635 gallons per hour (40 LPM) and an air pressure of 0.028 MPa (4.06 psi). That balance of volume and pressure supports multiple air outlets and can drive air through diffusers, long tubing runs, or multiple air stones.

• Flow: 635 GPH / 40 LPM
• Pressure: 0.028 MPa (4.06 psi)
• Power draw: 25 Watts for energy-efficient continuous operation
• Suitable for multi-outlet diffusers and moderate tubing lengths

Is the AP-40 quiet enough for residential or commercial settings?

Yes — the pump uses multiple noise-reducing measures, including an enlarged housing surface, sealed air chambers, rubber and silicone buffers, and a suspended magnetic-driven diaphragm. These features cut vibration and lower audible noise compared with basic piston or single-layer pumps.

• Multi-layer denoising construction for reduced vibration
• Suspending magnetic-driven diaphragm minimizes mechanical sound
• Rubber and silicone buffering reduces chassis-transmitted noise

How does the AP-40 manage heat and durability for long-term use?

The AP-40’s housing is enlarged to increase surface area for passive heat dissipation, keeping operating temperatures lower during continuous duty. Key wear parts include a sulfurized rubber diaphragm designed to resist fatigue; replacement diaphragm kits are available under the listed rebuild code.

• Enlarged housing for improved heat release and longer component life
• Full-copper motor coil for stable operation and lower heat generation
• Durable sulfurized rubber diaphragm; rebuild kit searchable by code B0BKKYN7Z7

What accessories are included and what else will I need?

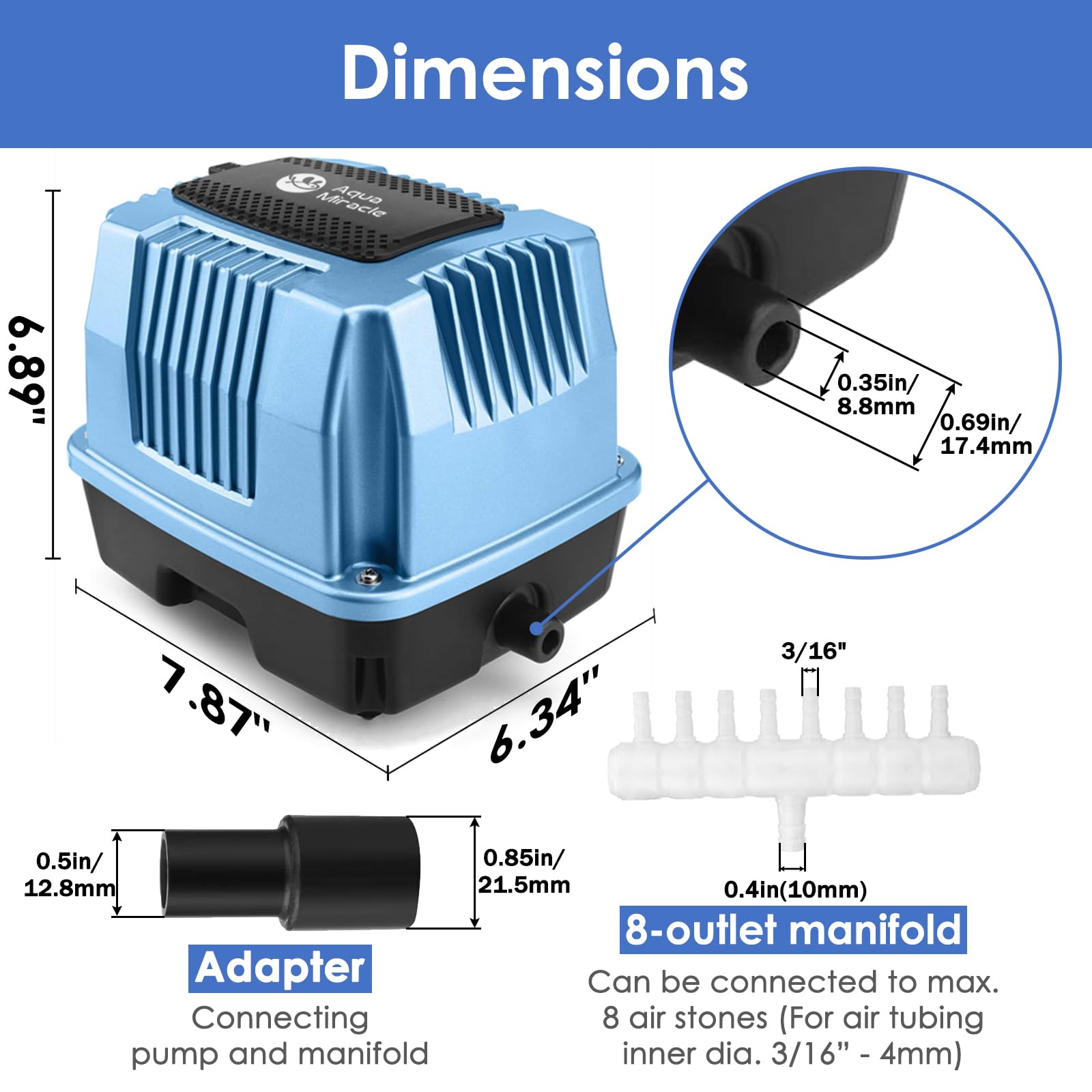

The AP-40 ships with an 8-outlet air diffuser that lets you run several air stones from a single pump. Airline tubing and air stones are not included and should be chosen to match your outlet count and desired diffusion pattern.

• Included: 8-outlet air diffuser for multiple air stones
• Not included: airline tubing and air stones — select size based on distance and flow needs
• Consider check valves and tubing clamps for backflow protection and secure connections

Who this is for: The AquaMiracle AP-40 suits pond owners with koi or large-stock tanks, small to medium fish farms, hydroponic growers needing reliable oxygenation, septic aeration setups, and food-service aquaculture like seafood restaurants. Choose this model when you need steady, higher-volume airflow with managed noise and long-term durability rather than a lightweight hobby pump.
